VO3120-X007T footprint, schematic symbol and 3D model by Vishay

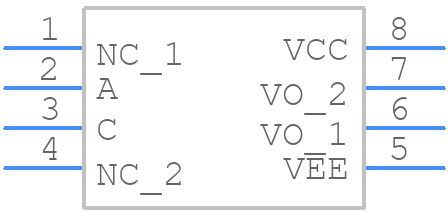

Symbol

PCB Footprints

3D Models

VO3120-X007T Details

The recommended storage condition for VO3120-X007T is in a dry, cool place, away from direct sunlight, and in its original packaging or anti-static bag to prevent electrostatic discharge (ESD) damage.
Handle VO3120-X007T by the body, avoiding touching the leads or pins to prevent ESD damage. Use a soldering iron with a temperature below 260°C (500°F) and avoid applying excessive force or bending the leads during soldering.
The maximum allowable power dissipation for VO3120-X007T is 250 mW. Exceeding this limit may cause the device to overheat, leading to reduced performance or failure.
VO3120-X007T is rated for operation up to 125°C (257°F). However, it's essential to derate the power dissipation according to the temperature derating curve provided in the datasheet to ensure reliable operation.
To ensure reliability in humid environments, use conformal coating or potting to protect VO3120-X007T from moisture. Additionally, follow the recommended storage and handling procedures to prevent moisture absorption.

Community Provided

System Verified

Community Approved

Use the download button to access the VO3120-X007T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like VO312, or try a keyword search, such as MOSFET Drivers
