A recommended PCB layout for VOD223T includes a ground plane underneath the device, minimal lead lengths, and a Kelvin connection for the sense pins to minimize parasitic inductance and resistance.
To ensure proper soldering and avoid solder bridging, use a soldering iron with a fine tip, apply a small amount of solder paste, and use a soldering technique that minimizes the risk of bridging, such as drag soldering or reflow soldering.
The maximum allowed voltage on the sense pins of VOD223T is ±0.3V relative to the VCC pin, to prevent damage to the device.
While VOD223T is rated for operation up to 150°C, it's essential to consider the device's power dissipation, thermal resistance, and package thermal limitations when operating in high-temperature environments. Ensure proper thermal management and derate the device accordingly.
To prevent ESD damage, handle VOD223T with ESD-protective equipment, such as wrist straps, mats, and bags. Ensure that the device is stored in its original packaging or an ESD-protective container when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VOD223T Overview

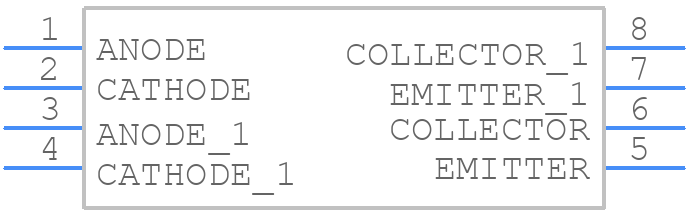

Use the download button to access the VOD223T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VOD22,
or try a keyword search, such as Optocoupler
