A recommended PCB layout for the VOD3120AB-T includes a ground plane, short and wide traces for the output pins, and a decoupling capacitor (e.g., 100nF) between the input pins and ground. This layout helps minimize electromagnetic interference (EMI) and ensures stable operation.
To avoid thermal damage, use a soldering iron with a temperature of 260°C (500°F) or lower, and limit the soldering time to 3 seconds or less. Apply a small amount of solder to the pins, and use a soldering technique that minimizes the temperature and time exposure to the component.
The maximum allowable voltage on the input pins of the VOD3120AB-T is 5V. Exceeding this voltage may cause damage to the component or affect its reliability.
The VOD3120AB-T is rated for operation up to 85°C (185°F). While it can tolerate short-term excursions up to 100°C (212°F), prolonged exposure to high temperatures may affect its reliability and lifespan. Consult the datasheet and application notes for guidance on high-temperature operation.
To troubleshoot issues with the VOD3120AB-T, check the input voltage, ensure proper PCB layout and soldering, verify the output load is within the specified range, and inspect for signs of physical damage or overheating. Consult the datasheet and application notes for specific troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VOD3120AB-T Overview

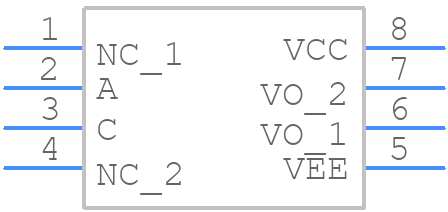

Use the download button to access the VOD3120AB-T schematic symbol, PCB footprint, and 3D model.
