VPP24-100 - Triad Magnetics

Description: Power Transformers POWER XFMR 24.0Vct@0.100A UL/CSA/VDE PCB MOUNT/VPP24-100

Download VPP24-100 Model

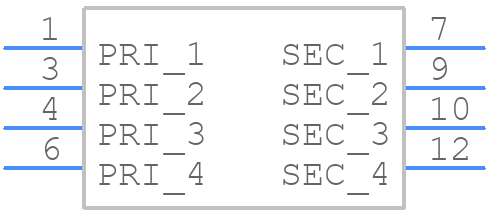

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

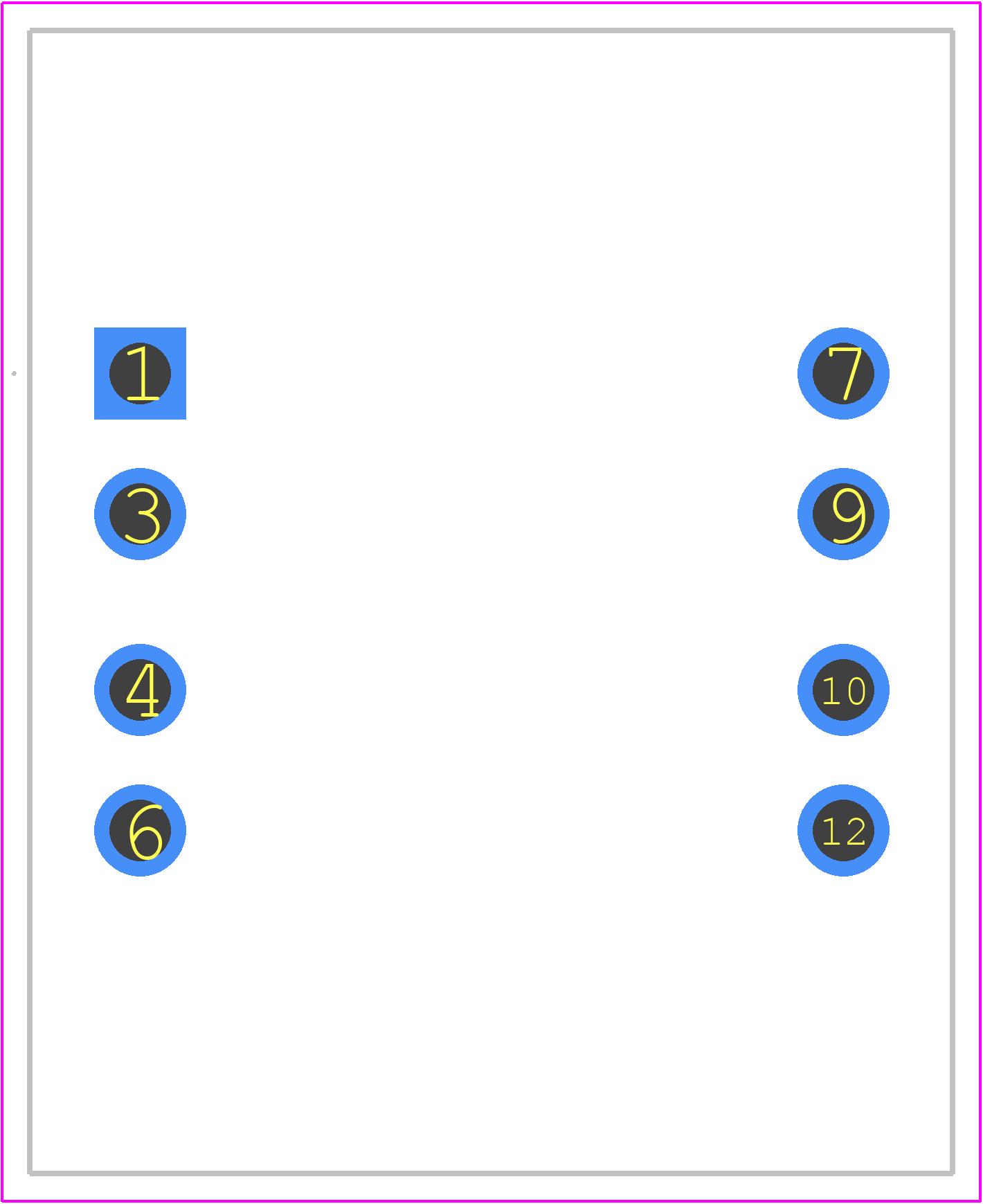

PCB Footprints
VPP24-100 - Triad Magnetics PCB footprint - Other - Other - VPP24-100-3
click to zoom
3D Models
VPP24-100 - Triad Magnetics  - 3D model - Other - VPP24-100-3
click to zoom

VPP24-100 Details

  • Manufacturer Part Number:

    VPP24-100

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.98

  • Application:

    POWER

  • Approvals:

    CSA; IEC; TUV; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    28.58 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    4000 V

  • Length:

    41.28 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.2 A

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    12 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    2.5 VA

  • Width:

    33.34 mm

VPP24-100 Frequently Asked Questions (FAQs)

  • Triad Magnetics recommends a symmetrical PCB layout with the transformer centered on the board, and the primary and secondary windings on opposite sides of the board to minimize electromagnetic interference (EMI).
  • Proper thermal management can be achieved by providing adequate airflow around the transformer, using a heat sink if necessary, and ensuring that the ambient temperature is within the specified operating range.
  • Triad Magnetics recommends that the voltage imbalance between the primary and secondary windings should not exceed 10% to ensure reliable operation and prevent premature failure.
  • Yes, the VPP24-100 is designed to meet the requirements of high-reliability and safety-critical applications, but it is recommended to consult with Triad Magnetics' application engineers to ensure that the specific requirements of the application are met.
  • Triad Magnetics recommends a minimum creepage distance of 4.5 mm and a minimum clearance distance of 3.2 mm between the primary and secondary windings to ensure electrical isolation and prevent arcing.
