VPP24-1250 - Triad Magnetics

Description: Power Transformers Power Transformer, PC Mount, 30 V A, 12/24VDC (Nominal Secondary) Output, 115/230VAC Input, 24VDC CT at 1.25A Secondary in Series, 12VDC at 2.5A Secondary in Parallel, 50/60Hz Frequency

Download VPP24-1250 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

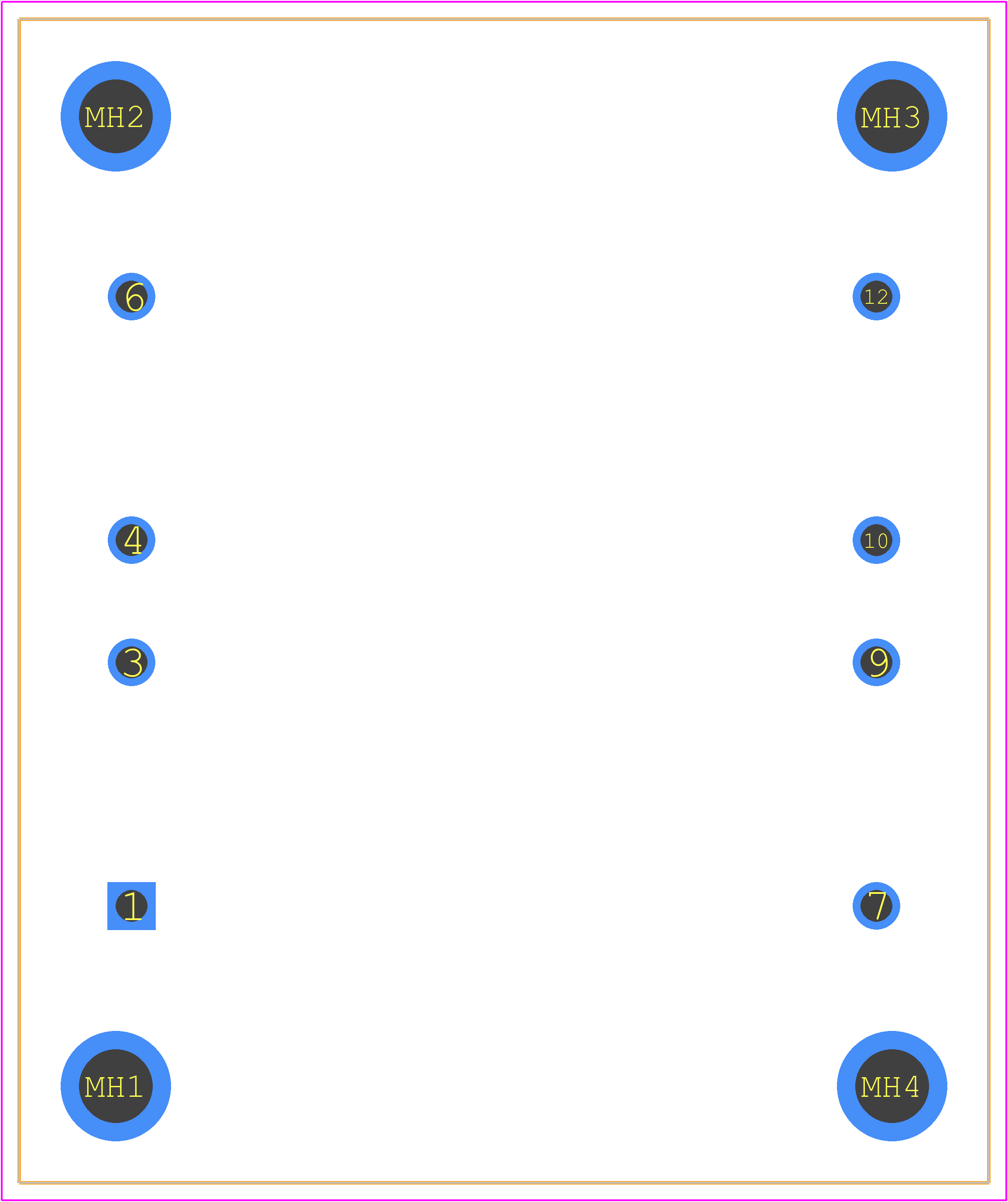

VPP24-1250 - Triad Magnetics PCB footprint - Other - Other - VPP24-1250-2_1
click to zoom
3D Models
VPP24-1250 - Triad Magnetics  - 3D model - Other - VPP24-1250-2_1
click to zoom

VPP24-1250 Details

  • Manufacturer Part Number:

    VPP24-1250

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.98

  • Application:

    POWER

  • Approvals:

    CSA; IEC; TUV; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    39.69 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    4000 V

  • Length:

    66.68 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Output Current 1:

    2.5 A

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    12 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    30 VA

  • Width:

    55.56 mm

VPP24-1250 Frequently Asked Questions (FAQs)

  • A good PCB layout for the VPP24-1250 should ensure that the input and output windings are separated to minimize electromagnetic interference (EMI). The transformer should be placed away from high-frequency components and the PCB should have a solid ground plane to reduce noise.
  • To ensure reliable operation over the full temperature range, it's essential to follow proper thermal management practices. This includes providing adequate airflow, using a heat sink if necessary, and ensuring that the transformer is not exposed to extreme temperatures or thermal shocks.
  • Exceeding the maximum ratings of the VPP24-1250 can lead to reduced lifespan, decreased performance, and even catastrophic failure. It's essential to operate the transformer within its specified ratings to ensure reliable operation and prevent damage.
  • The fuse rating should be selected based on the maximum current rating of the transformer, taking into account the inrush current during startup and the steady-state current during operation. A slow-blow fuse is recommended to handle the inrush current.
  • When working with the VPP24-1250, it's essential to follow proper safety precautions to avoid electrical shock, injury, or death. This includes ensuring the transformer is properly installed, grounded, and isolated from the user, and following proper lockout/tagout procedures during maintenance.
