VS-8DKH02-M3/H - Vishay

Description: RECT 8A 0.7V FRED PT FLATPAK 5X6

Download VS-8DKH02-M3/H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

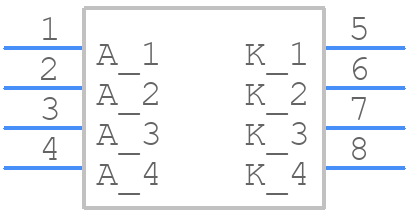

Symbol
VS-8DKH02-M3/H - Vishay - PCB symbol
click to zoom

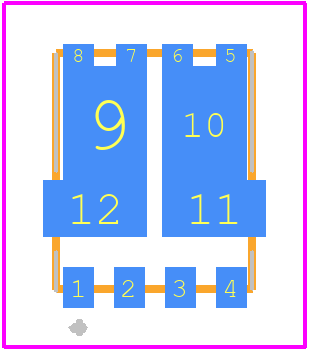

PCB Footprints
VS-8DKH02-M3/H - Vishay PCB footprint - Other - Other - FlatPAK 5 x 6 (Dual)
click to zoom

VS-8DKH02-M3/H Details

  • Manufacturer Part Number:

    VS-8DKH02-M3/H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    5 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.45

  • Additional Feature:

    FREE WHEELING DIODE, LOW LEAKAGE CURRENT

  • Application:

    HYPERFAST SOFT RECOVERY

  • Breakdown Voltage-Min:

    200 V

  • Case Connection:

    CATHODE

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.96 V

  • JESD-30 Code:

    R-PDSO-F6

  • Non-rep Pk Forward Current-Max:

    173 A

  • Number of Elements:

    2

  • Number of Phases:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Rep Pk Reverse Voltage-Max:

    200 V

  • Reverse Current-Max:

    2 µA

  • Reverse Recovery Time-Max:

    0.025 µs

  • Reverse Test Voltage:

    200 V

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

VS-8DKH02-M3/H Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for the VS-8DKH02-M3/H is -40°C to 125°C, as per Vishay's general guidelines for storage and handling of semiconductor devices.
  • Yes, the VS-8DKH02-M3/H is designed for high-reliability applications, such as aerospace, defense, and industrial control systems, due to its high-quality construction and rigorous testing.
  • The maximum allowable power dissipation for the VS-8DKH02-M3/H is 1.5 W, as specified in the datasheet. However, it's essential to consider the thermal resistance and ambient temperature to ensure safe operation.
  • Yes, the VS-8DKH02-M3/H is compatible with lead-free soldering processes, as it meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.
  • The typical response time for the VS-8DKH02-M3/H is around 1-2 microseconds, although this may vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VS-8DKH02-M3/H Overview

Use the download button to access the VS-8DKH02-M3/H schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like VS-8D, or try a keyword search, such as Rectifier Diodes
