VSC7421XJG-04 - Microchip

Description: Ethernet Switch 16-Port 2500Mbps 672-Pin HSBGA Tray

Download VSC7421XJG-04 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VSC7421XJG-04 - Microchip - PCB symbol
click to zoom
PCB Footprints

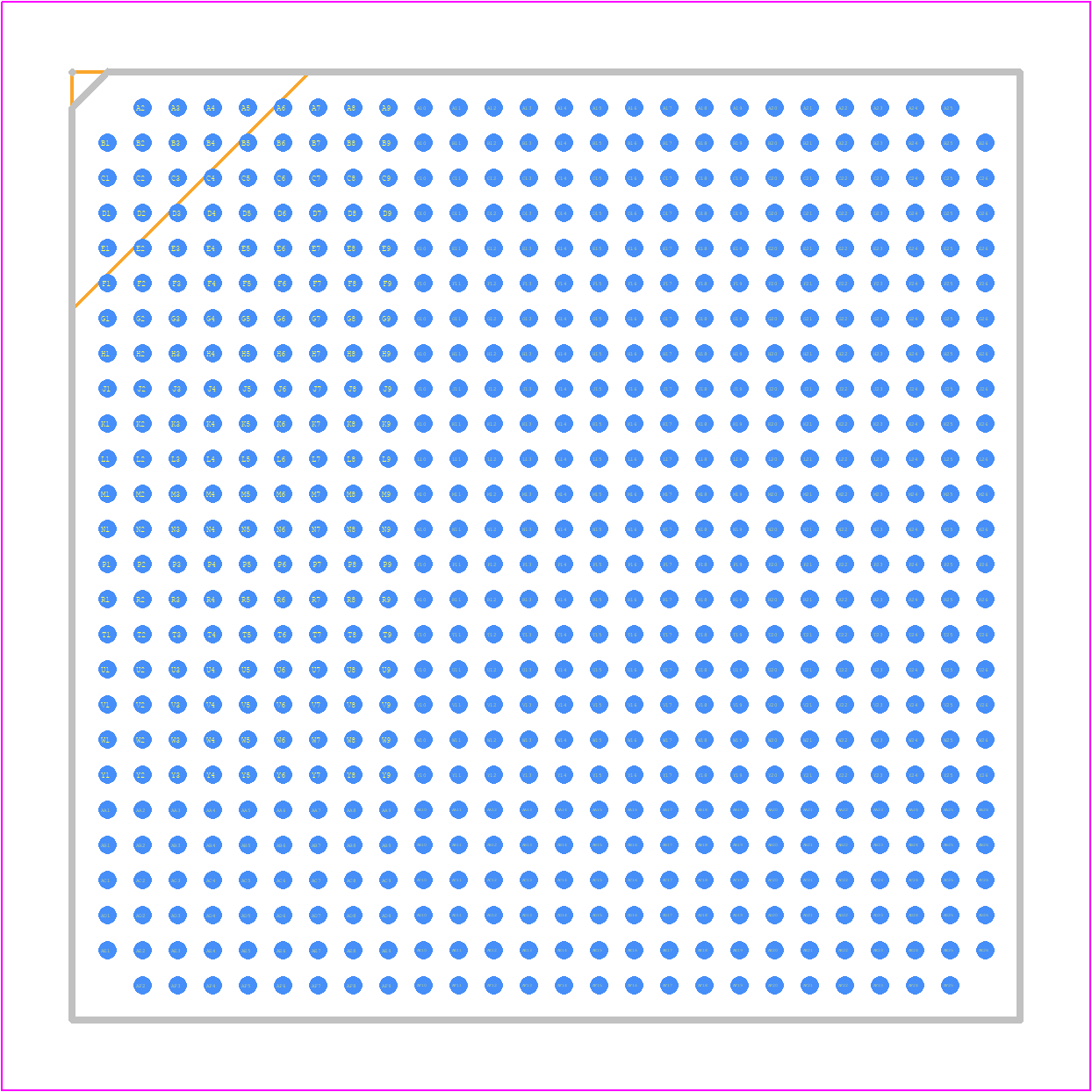

VSC7421XJG-04 - Microchip PCB footprint - BGA - BGA - BGA-672
click to zoom
3D Models
VSC7421XJG-04 - Microchip - 3D model - BGA - BGA-672
click to zoom

VSC7421XJG-04 Details

  • Manufacturer Part Number:

    VSC7421XJG-04

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    672

  • Manufacturer Package Code:

    HSBGA-672

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A991.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    14 Weeks

  • Date Of Intro:

    2019-10-10

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • JESD-30 Code:

    S-PBGA-B672

  • JESD-609 Code:

    e1

  • Length:

    27 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    672

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA672,26X26,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    2.44 mm

  • Supply Current-Max:

    2.6 mA

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    27 mm

VSC7421XJG-04 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a decoupling capacitor (e.g., 0.1uF) close to the VCC pin.
  • Use a heat sink or thermal pad to dissipate heat. Ensure good airflow around the device. Consider using a thermal interface material (e.g., thermal tape or thermal grease) to improve heat transfer.
  • The maximum current rating for the output pins is 20mA. Exceeding this rating may cause damage to the device or affect its reliability.
  • Use an oscilloscope to verify the clock signal frequency and amplitude. Check the clock signal routing and termination to ensure minimal signal degradation. Verify that the clock signal is within the specified frequency range (25MHz to 150MHz).
  • Power up the device in the following sequence: VCC, then AVCC, then all other power supplies. Ensure that all power supplies are stable before applying clock and input signals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VSC7421XJG-04 Overview

Use the download button to access the VSC7421XJG-04 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VSC74, or try a keyword search, such as Telecom Switching Circuits
