VSC7436XMT Frequently Asked Questions (FAQs)

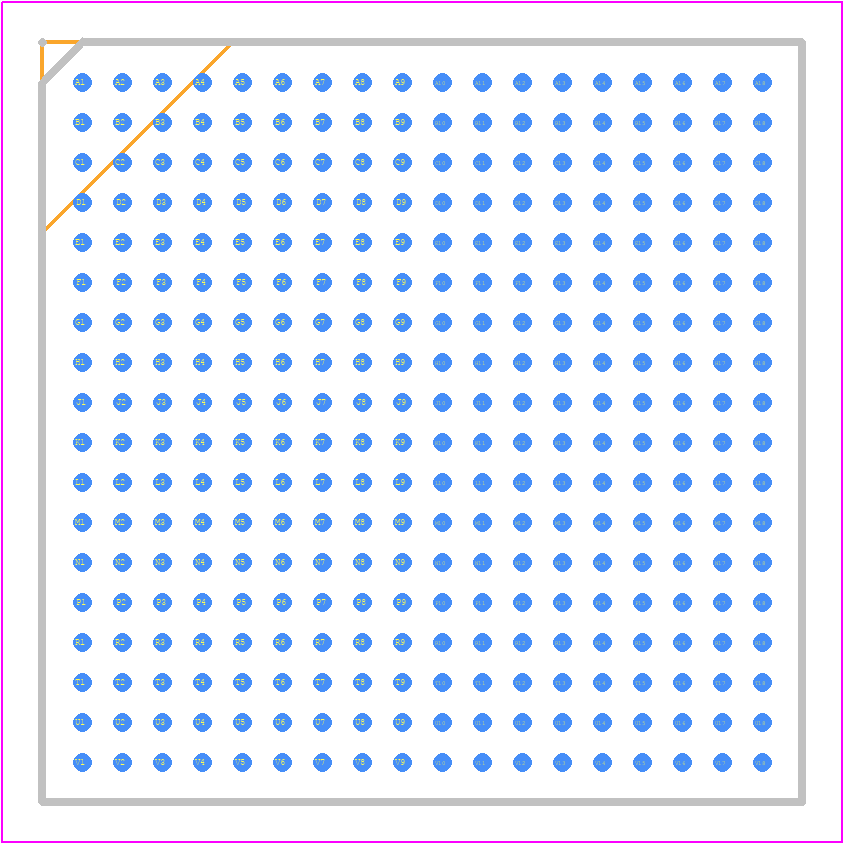

• What is the recommended PCB layout for the VSC7436XMT?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the decoupling capacitors should be placed as close to the device as possible.
• How do I optimize the VSC7436XMT for low power consumption?
  To optimize for low power consumption, ensure that the device is operated at the lowest possible frequency, use the lowest possible voltage supply, and minimize the number of active transceivers. Additionally, use the device's power-down modes and clock gating to reduce power consumption.
• What are the thermal considerations for the VSC7436XMT?
  The VSC7436XMT has a maximum junction temperature of 125°C. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to reduce thermal resistance. Avoid blocking airflow around the device and ensure that the PCB is designed to dissipate heat efficiently.
• How do I troubleshoot issues with the VSC7436XMT?
  Use a logic analyzer or oscilloscope to capture and analyze the device's signals. Check the device's configuration and programming, and ensure that the clock signals are stable and within specifications. Consult the datasheet and application notes for troubleshooting guides and FAQs.
• What are the EMI and RFI considerations for the VSC7436XMT?
  The VSC7436XMT is a high-speed device and can generate electromagnetic interference (EMI). Ensure that the PCB is designed with EMI in mind, using techniques such as shielding, grounding, and signal routing to minimize EMI. Additionally, follow proper electromagnetic compatibility (EMC) guidelines for the device's operating environment.
