VSC7440XMT - Microchip

Description: Ethernet ICs 10-Port L2/L3 ENT G-bit ENET Switch

Download VSC7440XMT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VSC7440XMT - Microchip - PCB symbol
click to zoom
PCB Footprints

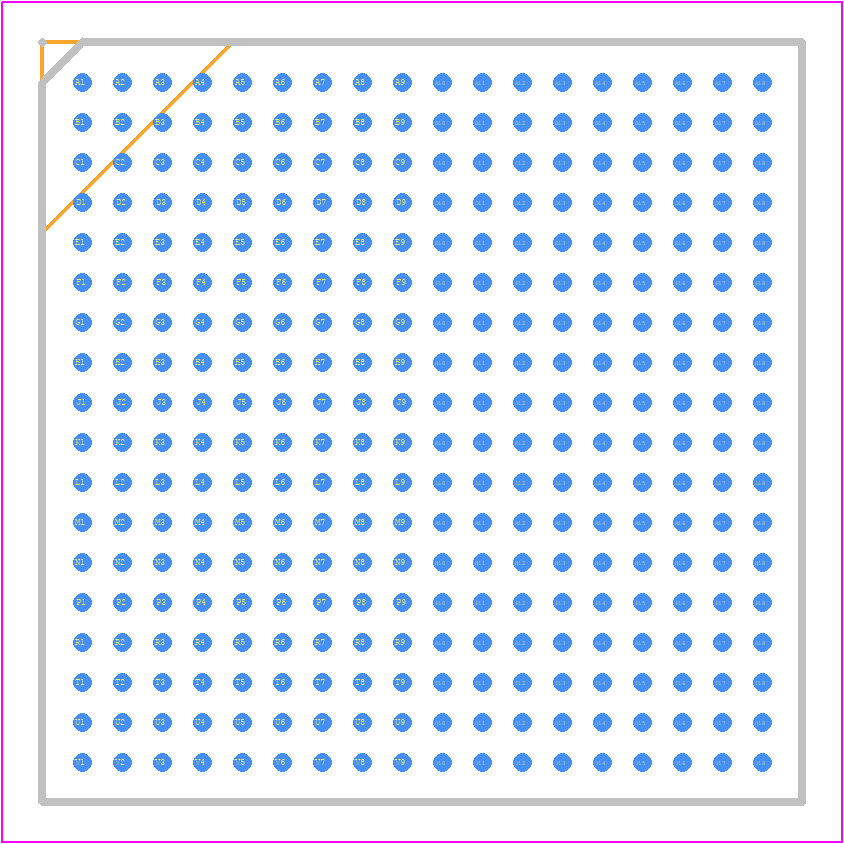

VSC7440XMT - Microchip PCB footprint - BGA - BGA - VSC7440XMT
click to zoom
3D Models
VSC7440XMT - Microchip - 3D model - BGA - VSC7440XMT
click to zoom

VSC7440XMT Details

  • Manufacturer Part Number:

    VSC7440XMT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-324

  • Pin Count:

    324

  • Manufacturer Package Code:

    PBGA-324

  • Country Of Origin:

    Philippines, Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    1 Week

  • Date Of Intro:

    2019-06-04

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • JESD-30 Code:

    S-PBGA-B324

  • Length:

    19 mm

  • Number of Functions:

    1

  • Number of Terminals:

    324

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA324,18X18,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    1.8 mm

  • Supply Current-Max:

    3300 mA

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    19 mm

VSC7440XMT Frequently Asked Questions (FAQs)

  • The maximum power consumption of the VSC7440XMT is approximately 3.5W, depending on the operating frequency and voltage.
  • The VSC7440XMT can be configured for use in various network topologies, including star, bus, and ring topologies, using the device's built-in registers and configuration pins. Refer to the device's programming guide for specific configuration instructions.
  • The VSC7440XMT supports Ethernet connections up to 100 meters (328 feet) using Category 5e or higher cabling, and up to 10 kilometers (6.2 miles) using fiber optic cabling.
  • Yes, the VSC7440XMT is rated for operation in industrial temperature ranges from -40°C to 85°C (-40°F to 185°F), making it suitable for use in industrial and harsh environments.
  • Troubleshooting issues with the VSC7440XMT typically involves checking the device's configuration, verifying proper power supply and clocking, and using diagnostic tools such as oscilloscopes and logic analyzers to identify signal integrity issues.
