VSC7449YIH-02 - Microchip

Description: Ethernet Switch 52-Port 10000Mbps 672-Pin FCBGA Tray

Download VSC7449YIH-02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VSC7449YIH-02 - Microchip - PCB symbol
click to zoom
PCB Footprints

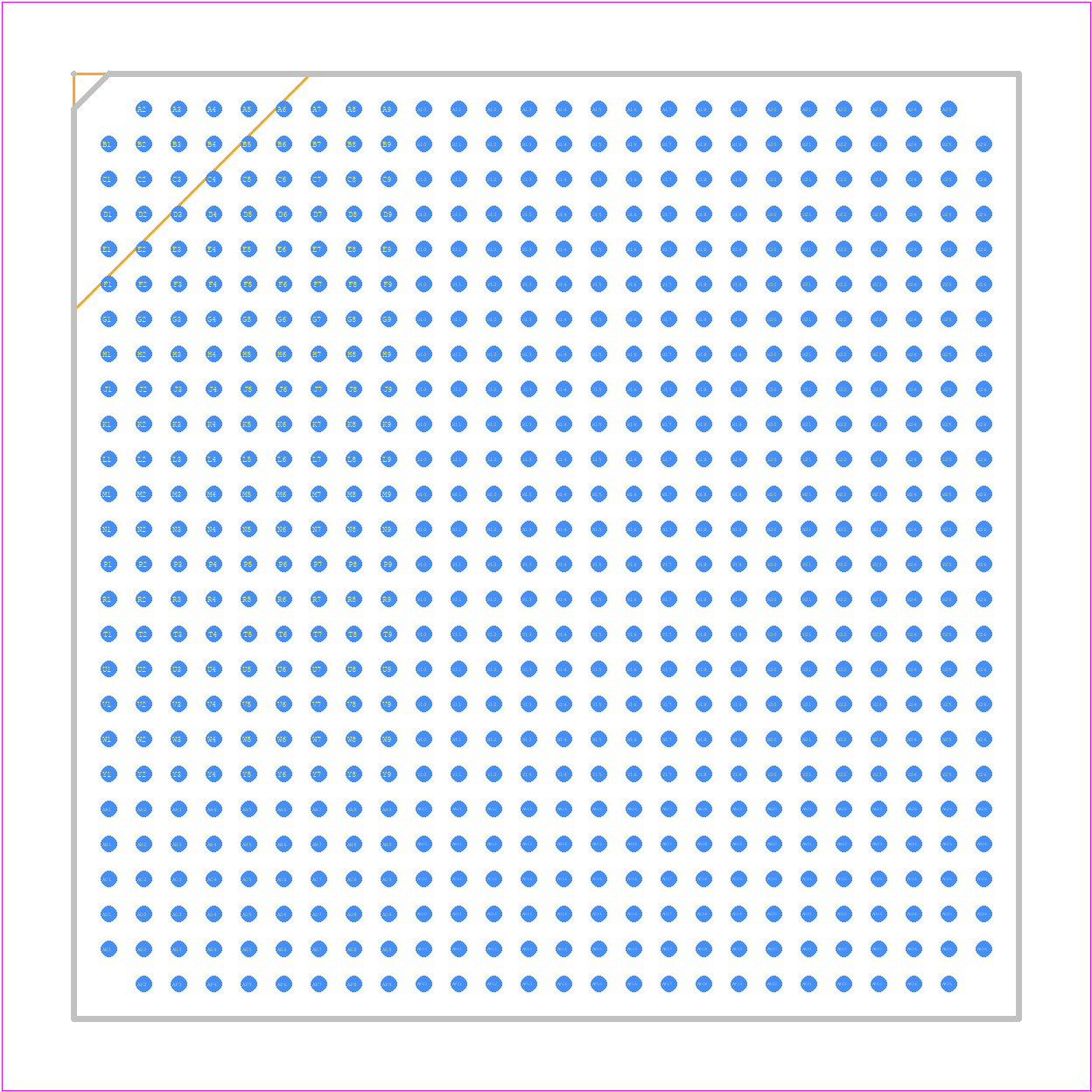

VSC7449YIH-02 - Microchip PCB footprint - BGA - BGA - 672 BGA
click to zoom
3D Models
VSC7449YIH-02 - Microchip - 3D model - BGA - 672 BGA
click to zoom

VSC7449YIH-02 Details

  • Manufacturer Part Number:

    VSC7449YIH-02

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FBGA-672

  • Pin Count:

    672

  • Manufacturer Package Code:

    HFCBGA-672

  • Country Of Origin:

    South Korea, Taiwan

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • JESD-30 Code:

    S-PBGA-B672

  • Length:

    27 mm

  • Number of Functions:

    1

  • Number of Terminals:

    672

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA672,26X26,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    2.71 mm

  • Supply Current-Max:

    8100 mA

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    27 mm

VSC7449YIH-02 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a decoupling capacitor (e.g., 0.1uF) close to the VCC pin.
  • Use a heat sink or thermal pad to dissipate heat. Ensure good airflow around the device. Consider using a thermal interface material (e.g., thermal tape or thermal grease) to improve heat transfer.
  • The maximum cable length depends on the specific application and signal frequency. As a general guideline, the VSC7449YIH-02 supports cable lengths up to 100 meters at 1 Gbps and up to 40 meters at 10 Gbps.
  • Use a logic analyzer or oscilloscope to monitor the signal quality and timing. Check the device's configuration and register settings. Verify that the PCB layout and power supply meet the recommended specifications.
  • Yes, the VSC7449YIH-02 supports redundant configurations using multiple devices. Implement a redundant system design with automatic failover to ensure high availability and minimize downtime.
