VSC8211XVW - Microsemi Corporation

Description: PHY 1-CH 10Mbps/100Mbps/1Gbps 117-Pin LBGA Tray

Download VSC8211XVW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VSC8211XVW - Microsemi Corporation - PCB symbol
click to zoom
PCB Footprints

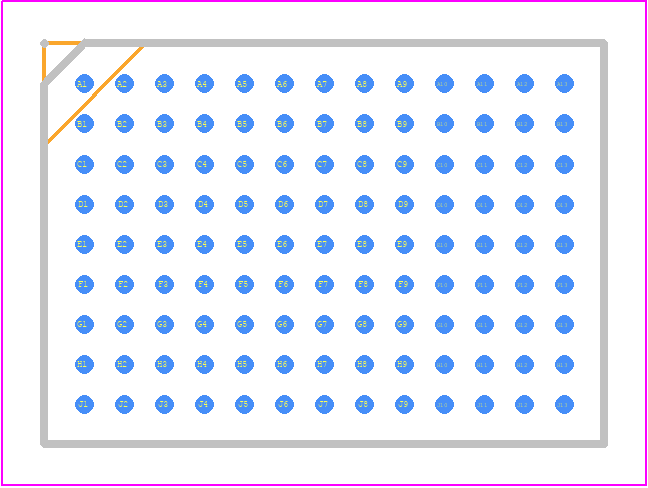

VSC8211XVW - Microsemi Corporation PCB footprint - BGA - BGA - 117-ball 10x14mm LBGA Mechanical Specification
click to zoom
3D Models
VSC8211XVW - Microsemi Corporation - 3D model - BGA - 117-ball 10x14mm LBGA Mechanical Specification
click to zoom

VSC8211XVW Details

  • Manufacturer Part Number:

    VSC8211XVW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    10 X 14 MM, 1 MM PITCH, LEAD FREE, LBGA-117

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microsemi Corporation (now Microchip)

  • JESD-30 Code:

    R-PBGA-B117

  • Length:

    14 mm

  • Number of Functions:

    1

  • Number of Terminals:

    117

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    10 mm

VSC8211XVW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and crosstalk.
  • Ensure good thermal design, including a heat sink and thermal interface material. Also, follow the recommended operating conditions and derating guidelines in the datasheet.
  • Choose capacitors with low ESR, high ripple current rating, and a voltage rating that meets or exceeds the maximum voltage of the device. X7R or X5R dielectrics are recommended.
  • Use a logic analyzer or oscilloscope to monitor the device's signals and power rails. Check for proper power sequencing, voltage levels, and signal integrity. Consult the datasheet and application notes for troubleshooting guidelines.
  • Ensure that each power domain is properly isolated and that the VSC8211XVW is powered from a single, stable power source. Use level shifters or voltage translators as needed to interface with other power domains.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VSC8211XVW Overview

Use the download button to access the VSC8211XVW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VSC82, or try a keyword search, such as Network Interfaces
