VSK-S25-5U footprint, schematic symbol and 3D model by CUI Inc.

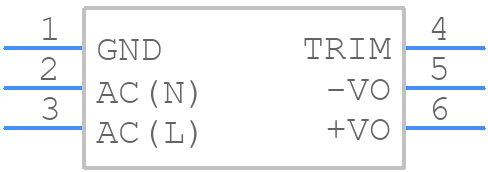

Symbol

click to zoom

PCB Footprints

VSK-S25-5U - CUI Inc. PCB footprint - Other - Other - VSK-S25-5U

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VSK-S25-5U
Part Number VSK-S25-5U
Manufacturer CUI Inc.
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - VSK-S25-5U
Released Date Oct 6, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

VSK-S25-5U Details

Manufacturer Part Number:
VSK-S25-5U
Brand Name:
CUI Inc
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
Date Of Intro:
2018-06-13
Manufacturer:
CUI Inc
YTEOL:
0
Additional Feature:
OTHER INPUT DC VOLTAGE RANGE IS 100V TO 370V
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
264 V
Input Voltage-Min:
85 V
Input Voltage-Nom:
115 V
JESD-30 Code:
R-XDMA-T6
Length:
70 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
50 °C
Operating Temperature-Min:
-10 °C
Output Voltage-Max:
5.5 V
Output Voltage-Min:
4.5 V
Output Voltage-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Seated Height-Max:
24 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
COMMERCIAL
Terminal Form:
THROUGH-HOLE
Terminal Position:
DUAL
Total Power Output-Max:
20.5 W
Trim/Adjustable Output:
YES
Width:
48 mm

VSK-S25-5U Frequently Asked Questions (FAQs)

CUI recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, a thermal interface material (TIM) with a thermal conductivity of 1-2 W/m-K should be used between the module and the heat sink.
To ensure reliable start-up and shutdown, CUI recommends a soft-start circuit to limit inrush current and a shutdown circuit to prevent voltage spikes. Additionally, a minimum of 10ms delay between power-on and enable signals is recommended.
CUI provides derating curves for temperature and altitude in the application notes section of the datasheet. For temperature, the output power derates by 2.5% per degree Celsius above 40°C. For altitude, the output power derates by 1% per 1,000 feet above sea level.
Yes, the VSK-S25-5U can be used in a redundant configuration. CUI recommends using a diode ORing circuit to connect the outputs of multiple modules. Additionally, a synchronization signal can be used to ensure that the modules are in phase with each other.
CUI estimates the MTBF of the VSK-S25-5U to be approximately 1.5 million hours at 40°C, calculated according to MIL-HDBK-217F.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

VSK-S25-5U Overview

Use the download button to access the VSK-S25-5U schematic symbol and PCB footprint.
