A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2 oz copper thickness is recommended. Additionally, thermal vias can be used to further improve heat dissipation.
Ensure that the device is operated within the recommended temperature range (-40°C to 150°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, consider derating the device's power dissipation at high temperatures.
A soldering profile with a peak temperature of 260°C and a dwell time of 30-60 seconds is recommended. The device should be soldered using a no-clean or water-soluble flux.
Handle the device in an ESD-controlled environment. Use ESD-protective packaging and handling equipment. Ground yourself before handling the device, and avoid touching the device's pins or leads.
Store the device in its original packaging or in a dry, ESD-protected environment. Avoid exposing the device to moisture, direct sunlight, or extreme temperatures.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VSOP38336 Overview

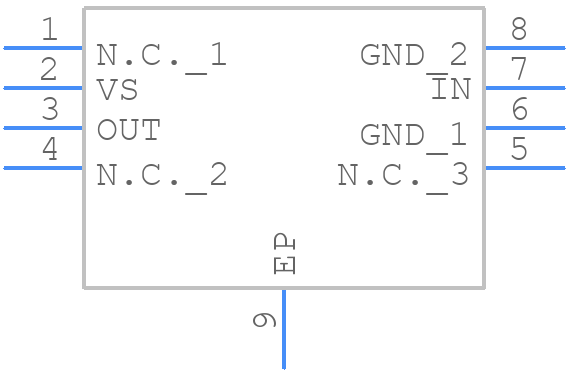

Use the download button to access the VSOP38336 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VSOP3,
or try a keyword search, such as Other Signal Circuits
