VTSR2001472GUF - Vishay

Description: Resistor Networks & Arrays 4.7Kohms 20pin bus 2%

Download VTSR2001472GUF Model

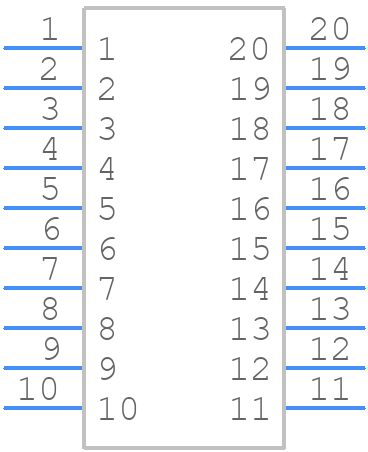

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
VTSR2001472GUF - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - VTSR-20
click to zoom
3D Models
VTSR2001472GUF - Vishay  - 3D model - Small Outline Packages - VTSR-20
click to zoom

VTSR2001472GUF Details

  • Manufacturer Part Number:

    VTSR2001472GUF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.20

  • Factory Lead Time:

    40 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.55

  • Additional Feature:

    FLAME PROOF

  • Construction:

    Rectangular

  • Element Power Dissipation:

    0.1 W

  • First Element Resistance:

    4700 Ω

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Network Type:

    BUSSED

  • Number of Elements:

    19

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    1.09 mm

  • Package Length:

    4.39 mm

  • Package Style:

    TSSOP

  • Package Width:

    6.5 mm

  • Packing Method:

    TUBE

  • Rated Power Dissipation (P):

    1.2 W

  • Rated Temperature:

    70 °C

  • Resistance:

    4700 Ω

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Second/Last Element Resistance:

    4700 Ω

  • Size Code:

    1726

  • Surface Mount:

    YES

  • Technology:

    THIN FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    GULL WING

  • Tolerance:

    2%

  • Working Voltage:

    50 V

VTSR2001472GUF Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the VTSR2001472GUF is a rectangular pad with dimensions of 2.5 mm x 1.25 mm, with a 0.5 mm radius corner and a 0.3 mm spacing between pads.
  • To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and apply a solder paste with a melting point of 217°C to 221°C. Also, ensure the PCB is clean and free of oxidation.
  • The maximum operating temperature range for the VTSR2001472GUF is -55°C to 150°C, with a derating of 1.33 mΩ/°C above 25°C.
  • Yes, the VTSR2001472GUF is suitable for high-frequency applications up to 1 GHz, but it's essential to consider the parasitic inductance and capacitance of the component and the PCB layout to minimize signal degradation.
  • Store the VTSR2001472GUF in a dry, cool place, away from direct sunlight and moisture. During shipping, use anti-static packaging and handle the components by the edges to prevent damage.
