The recommended PCB layout for the VUM33-05N involves placing the device close to the power source, using a solid ground plane, and keeping the leads as short as possible to minimize inductance and resistance. Additionally, it's recommended to use a thermal relief pattern on the PCB to ensure good thermal conduction.
To ensure proper soldering of the VUM33-05N, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder to the leads. Use a soldering technique that minimizes the time the iron is in contact with the device. Avoid applying excessive force or pressure, which can damage the device.
The VUM33-05N has a maximum surge current rating of 500A, which is specified in the datasheet. This rating is based on a 10/1000μs waveform, and the device is designed to withstand this level of surge current without damage.
The VUM33-05N has a maximum operating temperature of 150°C, making it suitable for high-temperature applications. However, it's essential to ensure that the device is properly derated for temperature to avoid overheating and ensure reliable operation.
When selecting a fuse holder or clip for the VUM33-05N, ensure that it is compatible with the device's physical dimensions and has a suitable current rating. Littelfuse recommends using their own fuse holders or clips, which are specifically designed for the VUM33-05N and provide optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VUM33-05N Overview

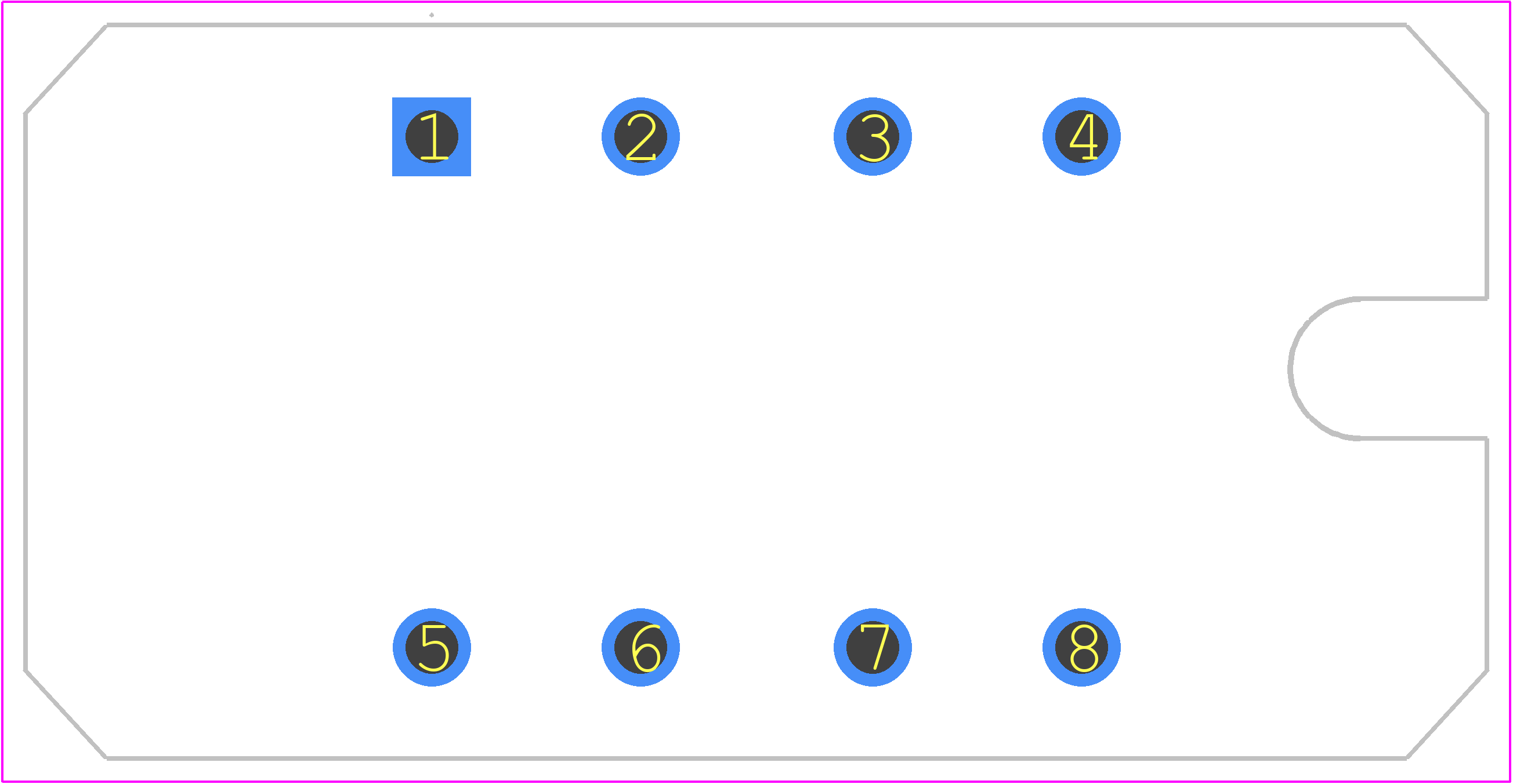

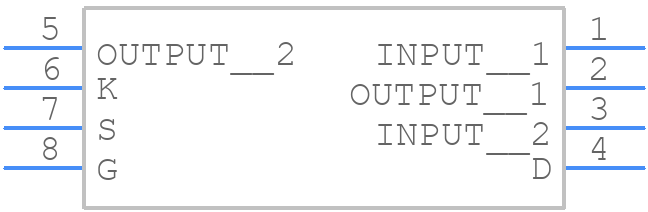

Use the download button to access the VUM33-05N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VUM33,
or try a keyword search, such as Power Field-Effect Transistors
