VXA-55-101E footprint, schematic symbol and 3D model by Ohmite

Symbol

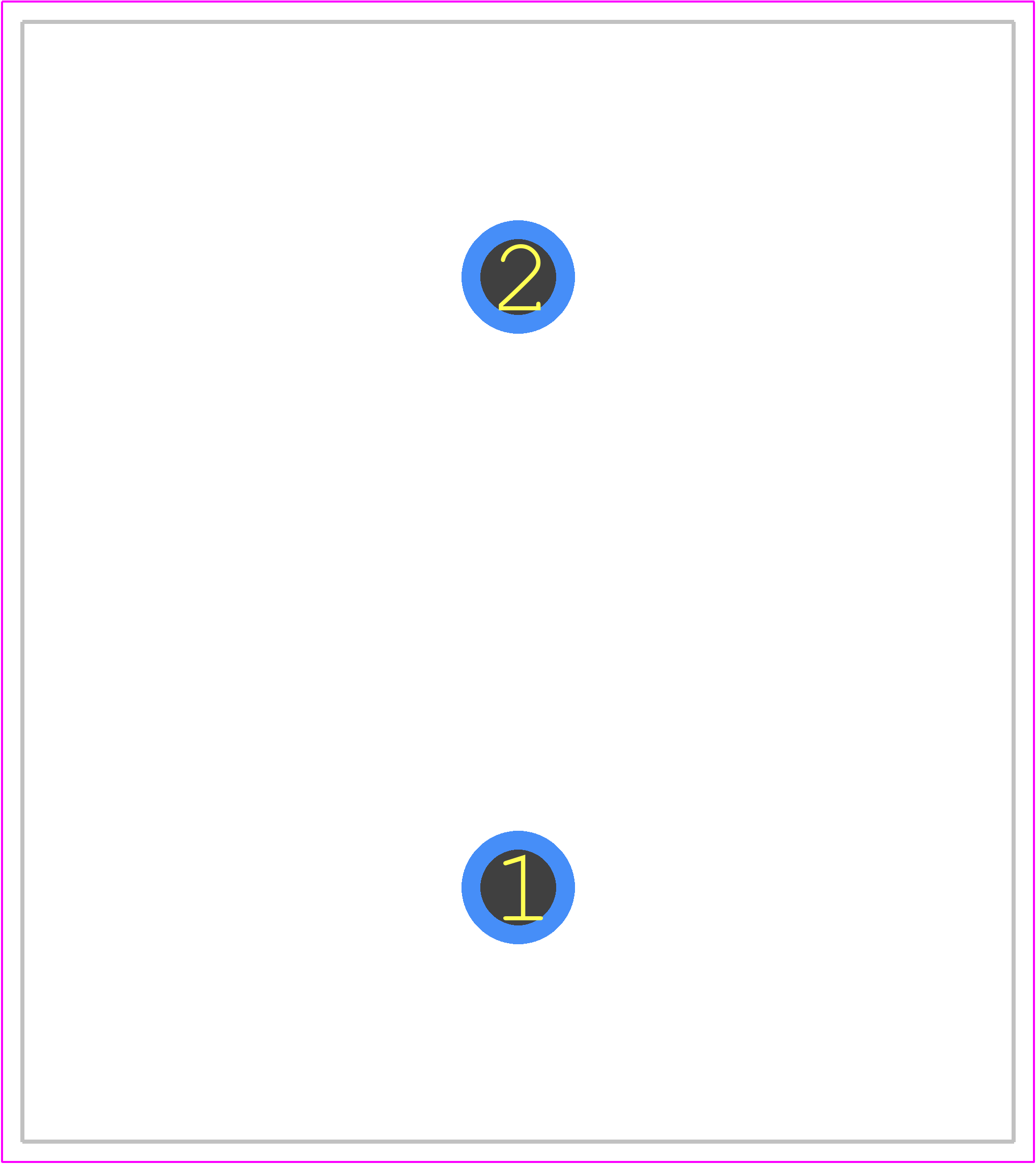

PCB Footprints

3D Models

VXA-55-101E Details

The thermal resistance of the VXA-55-101E is typically around 1.5°C/W, but this can vary depending on the specific application and mounting method.
While the VXA-55-101E is primarily designed for DC and low-frequency applications, it can be used in high-frequency applications up to 100 kHz with some derating. However, it's essential to consult with Ohmite's application engineers to ensure the component meets the specific requirements.
The VXA-55-101E is designed to withstand moderate vibration levels, but it's not suitable for extreme vibration environments. If your application involves high vibration, consider using a more ruggedized component or consulting with Ohmite's engineers for a custom solution.
The recommended torque for mounting the VXA-55-101E is 10-12 in-lbs (1.1-1.4 Nm). Over-tightening can damage the component, so it's essential to follow the recommended torque specification.
Yes, the VXA-55-101E is RoHS and REACH compliant, making it suitable for use in a wide range of applications, including those in the European Union.

Community Provided

System Verified

Community Approved

Use the download button to access the VXA-55-101E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like VXA-5, or try a keyword search, such as Heat Sinks
