VXR100-2805S - VPT

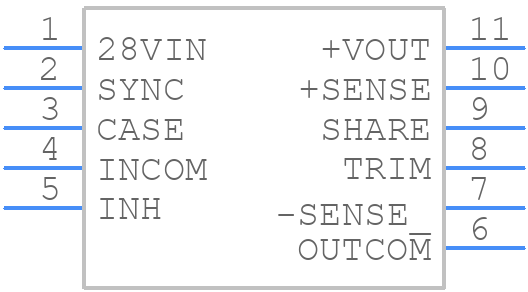

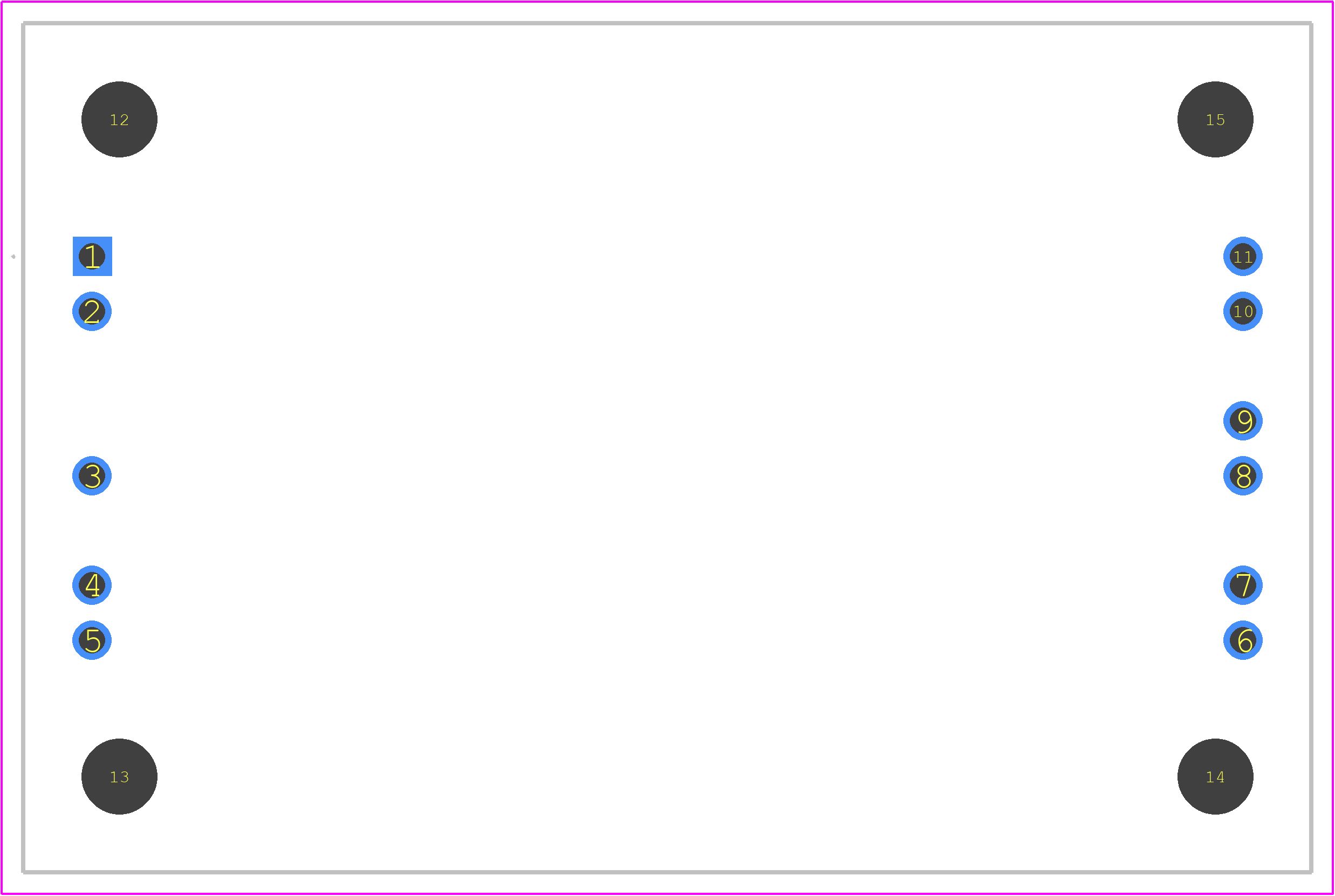

VXR100-2805S Details

• Manufacturer Part Number:

  VXR100-2805S

• Part Life Cycle Code:

  Active

• Package Description:

  PACKAGE-11

• Country Of Origin:

  Taiwan, USA

• ECCN Code:

  EAR99

• Manufacturer:

  VPT Inc

• YTEOL:

  7

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Control Mode:

  VOLTAGE-MODE

• Efficiency (Main Output):

  87%

• Input Voltage-Max:

  60 V

• Input Voltage-Min:

  11 V

• Input Voltage-Nom:

  28 V

• JESD-30 Code:

  R-MDMA-P11

• Length:

  56.69 mm

• Line Regulation-Max:

  1.2%

• Load Regulation-Max:

  1.2%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  11

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Output Current-Max:

  20 A

• Output Voltage-Max:

  5.13 V

• Output Voltage-Min:

  4.87 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  METAL

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,11LEAD,2

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OUTPUT CURRENT LIMIT, SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.02828 Vrms

• Seated Height-Max:

  10.66 mm

• Surface Mount:

  NO

• Switching Frequency-Max:

  550 kHz

• Technology:

  HYBRID

• Temperature Grade:

  OTHER

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  100 W

• Trim/Adjustable Output:

  YES

• Width:

  39.37 mm
