Part Image

VXR30-281505D - VPT

Description: HIGH RELIABILITY COTS DC-DC CONVERTERS 9V to 60V , -55°C to +105°C

Download VXR30-281505D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

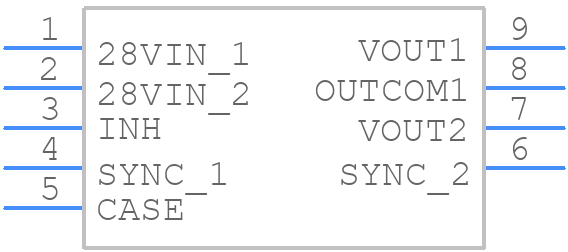

VXR30-281505D - VPT - PCB symbol
click to zoom
PCB Footprints

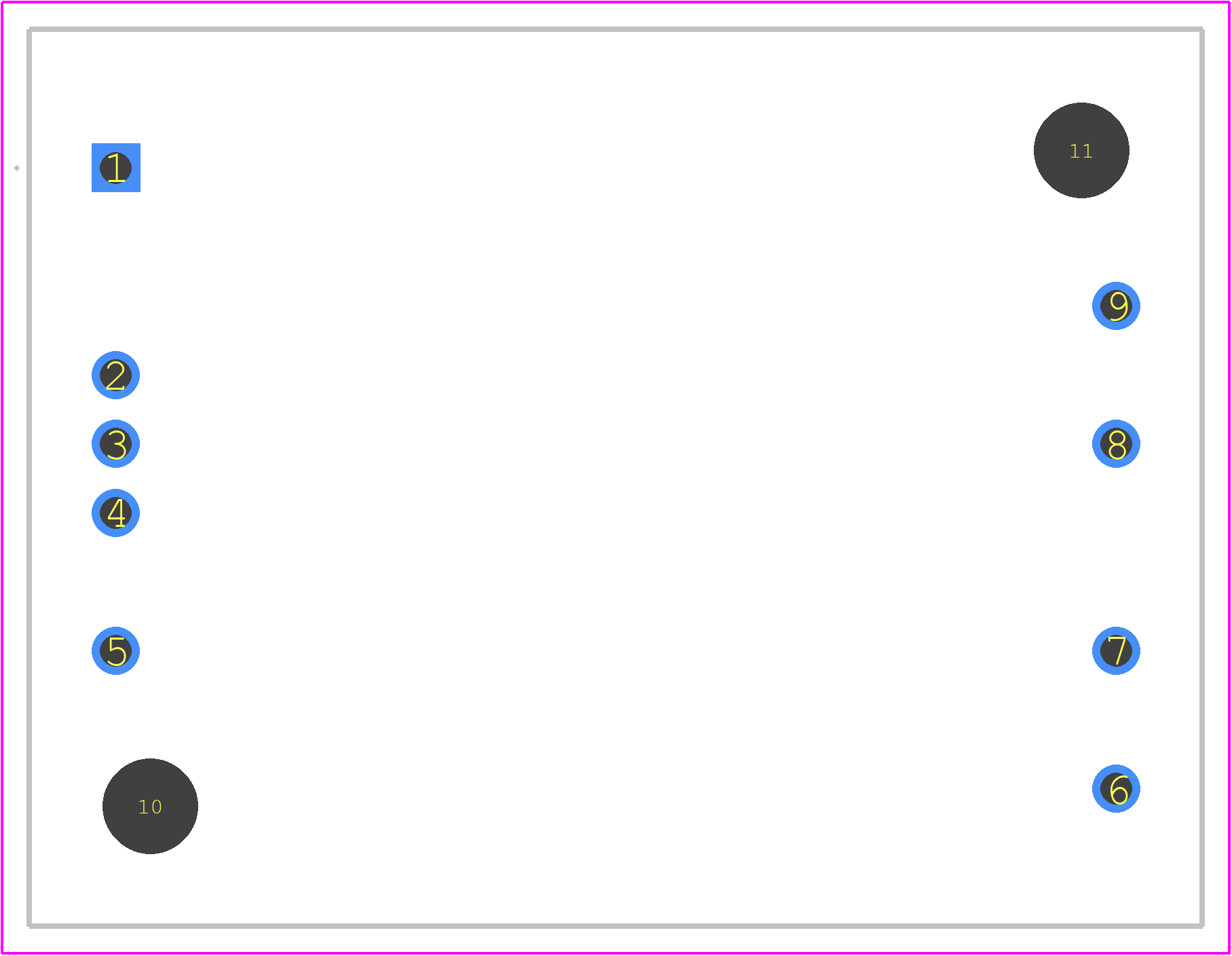

VXR30-281505D - VPT PCB footprint - Other - Other - VXR30-281505D-1
click to zoom
3D Models
VXR30-281505D - VPT - 3D model - Other - VXR30-281505D-1
click to zoom

VXR30-281505D Details

  • Manufacturer Part Number:

    VXR30-281505D

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan, USA

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-09-17

  • Manufacturer:

    VPT Inc

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VXR30-281505D Overview

Use the download button to access the VXR30-281505D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VXR30, or try a keyword search, such as Power Supply Modules
