The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3-5 seconds. It's essential to follow the manufacturer's soldering guidelines to prevent damage to the capacitor.
The VZH100M1HTR-0606 is a general-purpose capacitor, and its high-frequency performance may not be optimal. For high-frequency applications, it's recommended to use capacitors specifically designed for high-frequency use, such as those with a lower equivalent series resistance (ESR) and higher self-resonant frequency.
The MSL rating for the VZH100M1HTR-0606 is typically MSL 2 or MSL 3, which means it can withstand exposure to moisture for a certain period before soldering. However, it's essential to check the manufacturer's documentation or consult with their technical support for the exact MSL rating and handling guidelines.
The VZH100M1HTR-0606 has a maximum operating temperature of 105°C (221°F). While it can tolerate high temperatures, it's not recommended for extreme high-temperature applications. If your design requires operation above 105°C, consider using capacitors specifically designed for high-temperature use.
The ESL value for the VZH100M1HTR-0606 is not typically provided in the datasheet. However, you can estimate the ESL value based on the capacitor's physical dimensions and the manufacturer's ESL data for similar products. Alternatively, consult with the manufacturer's technical support for more information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VZH100M1HTR-0606 Overview

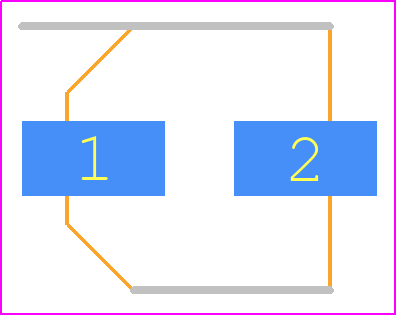

Use the download button to access the VZH100M1HTR-0606 schematic symbol, PCB footprint, and 3D model.
