The recommended land pattern for VZH470M1VTR-0606 can be found in the IPC-7351 standard or by consulting with the manufacturer's application notes. A general guideline is to use a land pattern with a pad size of 1.3mm x 0.8mm and a spacing of 0.5mm between pads.
The voltage derating for VZH470M1VTR-0606 depends on the operating temperature and life expectancy. As a general rule, it's recommended to derate the voltage by 1.25 to 1.5 times the rated voltage at high temperatures (above 85°C) and by 1.1 to 1.25 times at moderate temperatures (between 40°C to 85°C). Consult the manufacturer's application notes for specific guidance.
The ESR of VZH470M1VTR-0606 is not explicitly stated in the datasheet. However, according to industry standards, the ESR for a 470uF, 35V aluminum electrolytic capacitor is typically in the range of 0.05 to 0.15 ohms. Consult the manufacturer's application notes or contact their technical support for a more accurate value.
VZH470M1VTR-0606 is a radial lead type capacitor, which is generally suitable for moderate vibration environments. However, for high-vibration applications, it's recommended to use a capacitor with a more robust design, such as a screw-terminal or a hermetically sealed type. Consult the manufacturer's application notes or contact their technical support for specific guidance.
To prevent damage, store VZH470M1VTR-0606 in a cool, dry place away from direct sunlight and moisture. Avoid bending or flexing the leads, and handle the components by the body, not the leads. Use anti-static packaging and follow proper ESD handling procedures to prevent electrostatic discharge damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VZH470M1VTR-0606 Overview

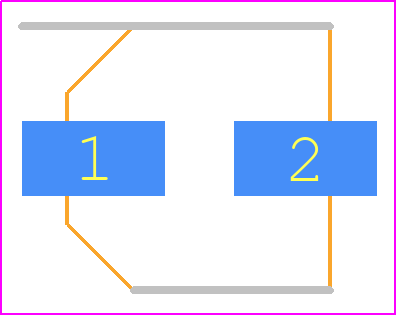

Use the download button to access the VZH470M1VTR-0606 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VZH47,
or try a keyword search, such as Aluminum Electrolytic Capacitors
