VZT100M1HTR-0406 - Lelon

Description: Aluminum Electrolytic Capacitors - SMD 10uF 20% 50V Ultra Low ESR

Download VZT100M1HTR-0406 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VZT100M1HTR-0406 - Lelon - PCB symbol
click to zoom

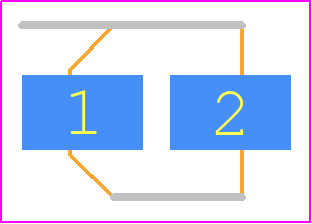

PCB Footprints
VZT100M1HTR-0406 - Lelon PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - VZT100M1HTR-0406
click to zoom
3D Models
VZT100M1HTR-0406 - Lelon - 3D model - Capacitor Al Electrolytic - VZT100M1HTR-0406
click to zoom

VZT100M1HTR-0406 Details

  • Manufacturer Part Number:

    VZT100M1HTR-0406

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Lelon Electronics Corp

  • YTEOL:

    7

  • Capacitance:

    10 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    5.8 mm

  • Leakage Current:

    0.005 mA

  • Length:

    4.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 Inch

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    55.25 mA

  • Size Code:

    1717

  • Surface Mount:

    YES

  • Tan Delta:

    0.1

  • Terminal Shape:

    FLAT

  • Width:

    4.3 mm

VZT100M1HTR-0406 Frequently Asked Questions (FAQs)

  • The recommended land pattern for VZT100M1HTR-0406 can be found in the IPC-7351 standard or by consulting with Lelon Electronics Corp's application notes. A general guideline is to use a land pattern with a pad size of 2.5mm x 1.5mm and a spacing of 1.5mm between pads.
  • Thermal management is critical for VZT100M1HTR-0406. Ensure good thermal conductivity by using a thermal pad or thermal tape on the backside of the component. Also, provide adequate airflow and consider using a heat sink if the component is expected to operate at high temperatures.
  • The maximum operating temperature range for VZT100M1HTR-0406 is -40°C to 125°C. However, it's recommended to operate the component within the recommended temperature range of -20°C to 85°C for optimal performance and reliability.
  • VZT100M1HTR-0406 is designed to withstand moderate vibration levels. However, if the application involves extreme vibration, it's recommended to consult with Lelon Electronics Corp or perform additional testing to ensure the component's reliability.
  • To ensure reliability in a humid environment, ensure that the component is properly sealed and conformally coated. Also, follow proper storage and handling procedures to prevent moisture absorption.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VZT100M1HTR-0406 Overview

Use the download button to access the VZT100M1HTR-0406 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VZT10, or try a keyword search, such as Aluminum Electrolytic Capacitors
