VZT101M1CTR-0506 - Lelon

Description: Aluminum Electrolytic Capacitors - SMD 100uF 20% 16V Ultra Low ESR

Download VZT101M1CTR-0506 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VZT101M1CTR-0506 - Lelon - PCB symbol
click to zoom
PCB Footprints

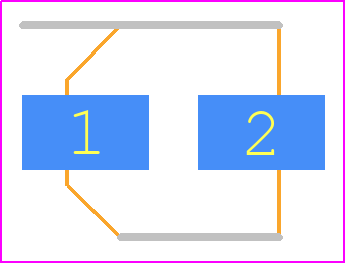

VZT101M1CTR-0506 - Lelon PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - VZT101M1CTR-0506
click to zoom
3D Models
VZT101M1CTR-0506 - Lelon - 3D model - Capacitor Al Electrolytic - VZT101M1CTR-0506
click to zoom

VZT101M1CTR-0506 Details

  • Manufacturer Part Number:

    VZT101M1CTR-0506

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Lelon Electronics Corp

  • YTEOL:

    7

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    5.8 mm

  • Leakage Current:

    0.016 mA

  • Length:

    5.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 Inch

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    16 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    156 mA

  • Size Code:

    2121

  • Surface Mount:

    YES

  • Tan Delta:

    0.16

  • Terminal Shape:

    FLAT

  • Width:

    5.3 mm

VZT101M1CTR-0506 Frequently Asked Questions (FAQs)

  • The recommended land pattern for VZT101M1CTR-0506 can be found in the IPC-7351 standard or by consulting with Lelon Electronics Corp's application notes. A general guideline is to use a land pattern with a pad size of 2.5mm x 1.25mm and a spacing of 1.5mm between pads.
  • Thermal management is crucial for VZT101M1CTR-0506. Ensure good airflow around the component, and consider using a heat sink or thermal pad if the operating temperature exceeds 85°C. Also, follow the recommended PCB layout and thermal design guidelines from Lelon Electronics Corp.
  • The MSL of VZT101M1CTR-0506 is typically Level 3, which means it can withstand a maximum of 168 hours of exposure to 30°C/60% RH before soldering. However, it's recommended to consult with Lelon Electronics Corp or the datasheet for the most up-to-date information.
  • VZT101M1CTR-0506 is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, it's recommended to consult with Lelon Electronics Corp or perform additional testing to ensure the component's reliability.
  • The recommended soldering profile for VZT101M1CTR-0506 is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. However, it's recommended to consult with Lelon Electronics Corp or the datasheet for the most up-to-date information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VZT101M1CTR-0506 Overview

Use the download button to access the VZT101M1CTR-0506 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VZT10, or try a keyword search, such as Aluminum Electrolytic Capacitors
