The recommended PCB layout for the W2465S-70LL involves placing the chip near the center of the board, using a solid ground plane, and keeping signal traces short and away from noise sources. Additionally, it's recommended to use a 4-layer board with a dedicated power plane and a dedicated ground plane.
The W2465S-70LL has an internal POR and BOD circuitry. To handle these features, ensure that the power supply is stable and within the recommended voltage range. Also, use an external capacitor (typically 10nF to 100nF) between the VCC and GND pins to filter out noise and ensure proper POR and BOD operation.
The maximum operating frequency of the W2465S-70LL is 70 MHz. As the operating frequency increases, power consumption also increases. To minimize power consumption, operate the device at the lowest frequency required for your application, and use the power-down mode when the device is not in use.
To implement a reliable boot process, ensure that the boot loader is stored in a non-volatile memory (e.g., flash memory) and that the boot process is designed to handle power-on reset and brown-out detection. Also, use a watchdog timer to detect and recover from system failures.
To minimize EMI and ensure EMC, use a shielded enclosure, keep signal traces short and away from noise sources, and use a common-mode choke or ferrite bead on the power supply lines. Additionally, ensure that the PCB layout and component placement are designed to minimize radiation and susceptibility to external interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W2465S-70LL Overview

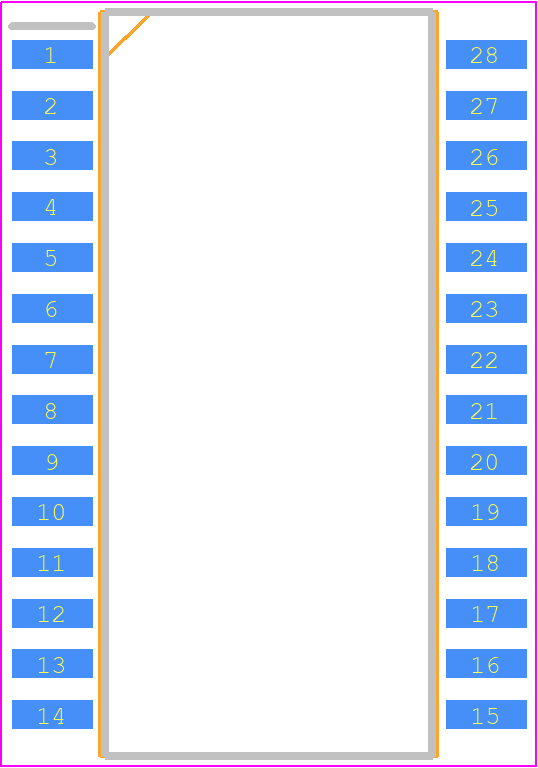

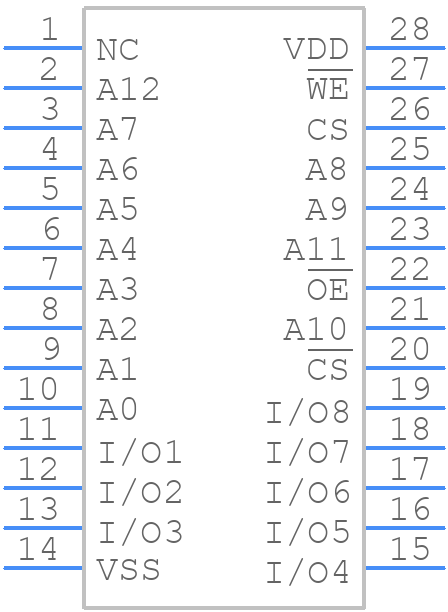

Use the download button to access the W2465S-70LL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W2465,
or try a keyword search, such as SRAMs
