The W25M02GVSFIG has a minimum of 100,000 erase cycles per sector, and a total of 1,000,000 erase cycles for the entire device.
The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC and a capacitor to GND to ensure a clean power-up and power-down sequence.
The W25M02GVSFIG supports clock frequencies up to 104 MHz. However, it's recommended to use a clock frequency of 50 MHz or lower to ensure reliable operation and to minimize power consumption.
The WP# pin should be pulled high during normal operation to enable write operations. If the WP# pin is pulled low, the device will be in a write-protected state, and any write operations will be ignored.
The deep power-down mode is used to reduce power consumption to a minimum. In this mode, the device will consume less than 1 μA, making it suitable for battery-powered applications. However, the device will not respond to any commands in this mode, and a power-on reset is required to exit this mode.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25M02GVSFIG Overview

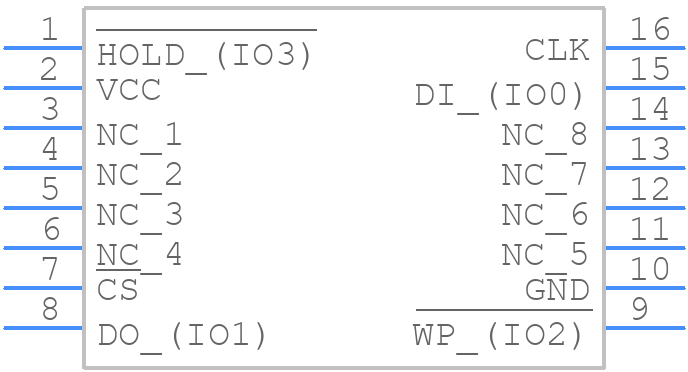

Use the download button to access the W25M02GVSFIG schematic symbol, PCB footprint, and 3D model.
