W25M02GVTBIT - Winbond

Description: Multichip Packages 2G-bit Serial NAND flash, 3V

Download W25M02GVTBIT Model

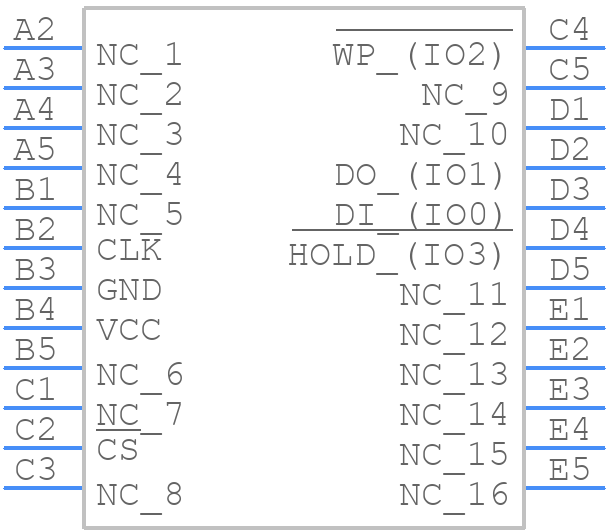

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25M02GVTBIT - Winbond PCB footprint - BGA - BGA - 24-Ball TFBGA 8x6-mm (Package Code TB, 5x5-1 Ball Array)
click to zoom
3D Models
W25M02GVTBIT - Winbond  - 3D model - BGA - 24-Ball TFBGA 8x6-mm (Package Code TB, 5x5-1 Ball Array)
click to zoom

W25M02GVTBIT Details

  • Manufacturer Part Number:

    W25M02GVTBIT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    8 mm

  • Memory Density:

    2147483648 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    268435456 words

  • Number of Words Code:

    256000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    SLC NAND TYPE

  • Width:

    6 mm

W25M02GVTBIT Frequently Asked Questions (FAQs)

  • The W25M02GVTBIT has a minimum of 100,000 erase cycles per sector, and a total of 1,000,000 erase cycles for the entire device.
  • The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC and a capacitor to GND to ensure a clean power-up and power-down sequence.
  • The W25M02GVTBIT supports clock frequencies up to 104 MHz. However, it's recommended to use a clock frequency of 50 MHz or lower to ensure reliable operation and to minimize power consumption.
  • The WP# pin should be pulled high during normal operation to enable write operations. If the WP# pin is pulled low, the device will be in a write-protected state, and any write operations will be ignored.
  • The deep power-down mode is used to reduce power consumption to a minimum when the device is not in use. In this mode, the device will consume less than 1 μA of current. However, the device will take longer to wake up from deep power-down mode compared to normal standby mode.
