W25M02GVZEIG - Winbond

Description: SERIAL SLC NAND FLASH MEMORY

Download W25M02GVZEIG Model

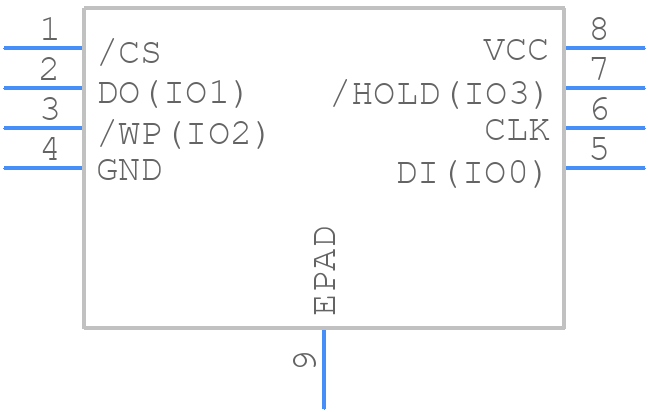

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25M02GVZEIG - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - WSON8x6
click to zoom
3D Models
W25M02GVZEIG - Winbond  - 3D model - Small Outline No-lead - WSON8x6
click to zoom

W25M02GVZEIG Details

  • Manufacturer Part Number:

    W25M02GVZEIG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    8 mm

  • Memory Density:

    2147483648 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    268435456 words

  • Number of Words Code:

    256000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    SLC NAND TYPE

  • Width:

    6 mm

W25M02GVZEIG Frequently Asked Questions (FAQs)

  • The W25M02GVZEIG has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The hold pin (HOLD#) is used to pause the serial flash memory during a read or write operation. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume the operation.
  • The WP# pin is the write protect pin. When it is pulled low, the entire memory array is protected from write operations. When it is pulled high, the memory array is not protected.
  • To perform a sector erase, send the sector erase command (0x20) followed by the address of the sector to be erased. The sector size is 4KB or 32KB, depending on the device configuration.
  • The main difference is the operating temperature range. The W25M02GVZEIG has an operating temperature range of -40°C to 85°C, while the W25M02GVZEIT has an operating temperature range of -40°C to 125°C.
