W25M02GWZEIG - Winbond

Description: Multichip Packages 2G-bit Serial NAND flash, 1.8V

Download W25M02GWZEIG Model

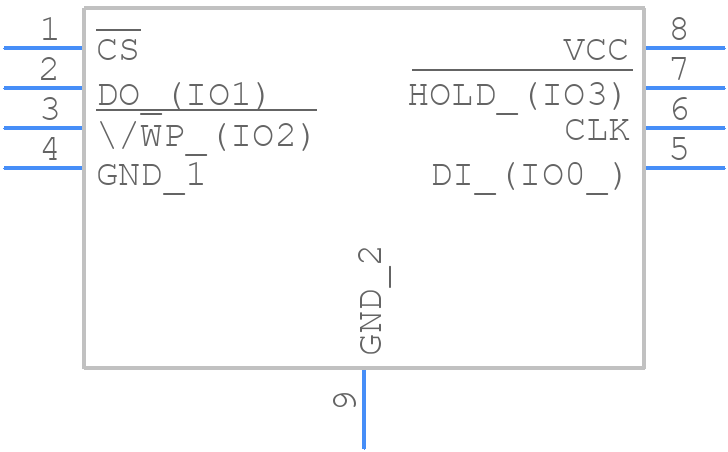

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25M02GWZEIG - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code ZE)
click to zoom
3D Models
W25M02GWZEIG - Winbond  - 3D model - Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code ZE)
click to zoom

W25M02GWZEIG Details

  • Manufacturer Part Number:

    W25M02GWZEIG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    WSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Date Of Intro:

    2018-02-13

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    3

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    8 mm

  • Memory Density:

    2147483648 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    268435456 words

  • Number of Words Code:

    256000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    SLC NAND TYPE

  • Width:

    6 mm

W25M02GWZEIG Frequently Asked Questions (FAQs)

  • The W25M02GWZEIG has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The hold pin (HOLD#) is used to pause the serial flash memory during a read or write operation. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume the operation.
  • The recommended power-up sequence is to apply VCC first, followed by the clock signal (CLK), and then the chip select (CS#) and other control signals. This ensures proper initialization of the device.
  • The WP# pin is used to enable or disable the write protection feature. To enable write protection, pull the WP# pin low, and to disable it, pull the WP# pin high or leave it floating.
  • The maximum operating frequency for the W25M02GWZEIG is 104 MHz, but it can operate at lower frequencies as well, depending on the application requirements.
