W25N01GVSFIG - Winbond

Description: 1Gb QspiNAND Flash 104MHz SOP16

Download W25N01GVSFIG Model

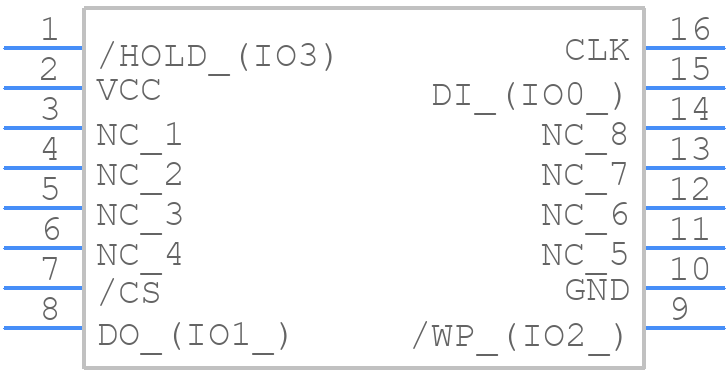

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25N01GVSFIG - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - W25N01GVSFIG
click to zoom
3D Models
W25N01GVSFIG - Winbond  - 3D model - Small Outline Packages - W25N01GVSFIG
click to zoom

W25N01GVSFIG Details

  • Manufacturer Part Number:

    W25N01GVSFIG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.31 mm

  • Memory Density:

    1073741824 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.64 mm

  • Serial Bus Type:

    QSPI

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    SLC NAND TYPE

  • Width:

    7.49 mm

W25N01GVSFIG Frequently Asked Questions (FAQs)

  • The W25N01GVSFIG has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The hold pin (HOLD#) is used to pause the flash memory operation. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume. Make sure to check the datasheet for the specific timing requirements.
  • The recommended power-up sequence is to apply VCC first, followed by VIO, and then the clock signal. This ensures proper initialization of the device.
  • The optimal clock frequency depends on the specific application and system requirements. The W25N01GVSFIG supports clock frequencies up to 104 MHz. Consult the datasheet and application notes for guidance on selecting the optimal clock frequency.
  • The W25N01GVSFIG is rated for operation up to 85°C. When operating in high-temperature environments, ensure proper thermal management, and consider the device's temperature coefficient and reliability.
