W25N01GVSFIT - Winbond

Description: 1Gb QspiNAND Flash 104MHz SOP16

Download W25N01GVSFIT Model

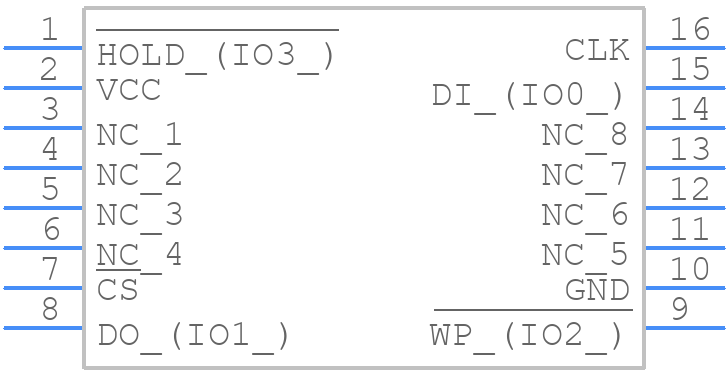

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25N01GVSFIT - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - -10.7 16-Pin SOIC 300-mil (Package Code SF)-
click to zoom
3D Models
W25N01GVSFIT - Winbond  - 3D model - Small Outline Packages - -10.7 16-Pin SOIC 300-mil (Package Code SF)-
click to zoom

W25N01GVSFIT Details

  • Manufacturer Part Number:

    W25N01GVSFIT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.31 mm

  • Memory Density:

    1073741824 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.64 mm

  • Serial Bus Type:

    QSPI

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    SLC NAND TYPE

  • Width:

    7.49 mm

W25N01GVSFIT Frequently Asked Questions (FAQs)

  • The W25N01GVSFIT supports up to 100,000 erase cycles.
  • The W25N01GVSFIT has a built-in power-on reset circuit that ensures the device is in a known state after power-up.
  • The WP# (Write Protect) pin is used to prevent accidental writes to the device. When WP# is low, the device is write-protected.
  • Yes, the W25N01GVSFIT can be used in an MCM design, but it requires careful consideration of the thermal and electrical interfaces.
  • The W25N01GVSFIT uses a page programming architecture, where data is programmed in pages of 256 bytes. The device automatically handles page boundaries.
