W25N01GWTCIG TR - Winbond

Description: NAND Flash Serial (SPI, Dual SPI, Quad SPI) 1.8V 1G-bit 128M x 8 8ns 24-Pin TFBGA T/R

Download W25N01GWTCIG TR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this W25N01GWTCIG TR model

Email notifications will be applied after download.

Send part feedback

Symbol

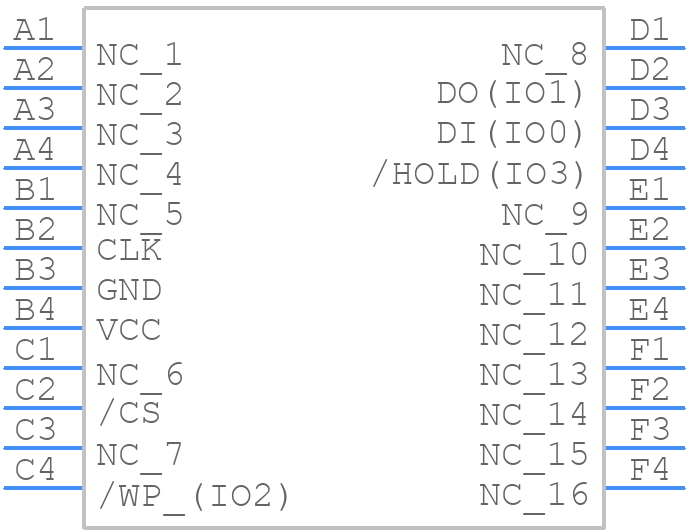

W25N01GWTCIG TR - Winbond - PCB symbol

PCB Footprints

W25N01GWTCIG TR - Winbond PCB footprint - BGA - BGA - TFBGA 8x6-mm

3D Models

W25N01GWTCIG TR - Winbond - 3D model - BGA - TFBGA 8x6-mm

Datasheet
Stock & Prices Price & Stock for W25N01GWTCIG TR
Part Number W25N01GWTCIG TR
Manufacturer Winbond
Pin Count 24
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - TFBGA 8x6-mm
Released Date Feb 17, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

W25N01GWTCIG TR Details

Manufacturer Part Number:
W25N01GWTCIG TR
Manufacturer:
Winbond Electronics Corp
