W25N01GWTCIG - Winbond

Description: 1Gb Serial NAND Flash Memory with uniform 2KB+64B page size and set Buffer Read Mode as default

Download W25N01GWTCIG Model
Schematic

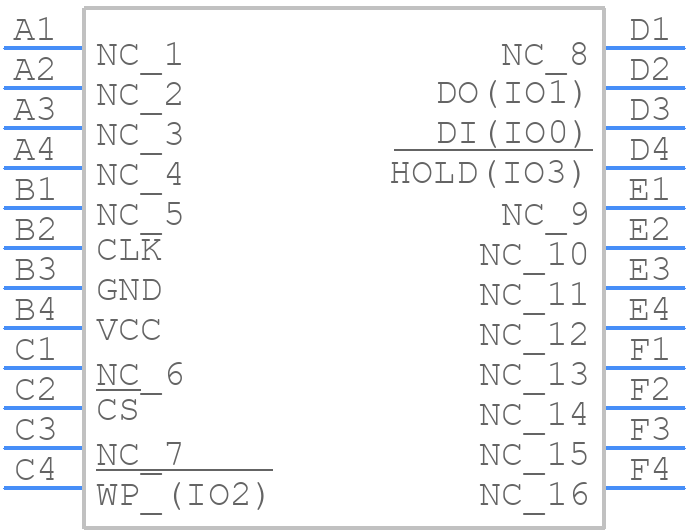

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25N01GWTCIG - Winbond PCB footprint - BGA - BGA - TFBGA 8x6-mm
click to zoom
3D Models
W25N01GWTCIG - Winbond  - 3D model - BGA - TFBGA 8x6-mm
click to zoom

W25N01GWTCIG Details

  • Manufacturer Part Number:

    W25N01GWTCIG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFBGA-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Date Of Intro:

    2017-03-08

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6.15

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    8 mm

  • Memory Density:

    1073741824 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA24,4X6,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    QSPI

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    SLC NAND TYPE

  • Width:

    6 mm

W25N01GWTCIG Frequently Asked Questions (FAQs)

  • The W25N01GWTCIG has a minimum of 100,000 erase cycles per sector, and a total of 1,000,000 erase cycles for the entire device.
  • The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC and a capacitor to GND to ensure a clean power-up and power-down sequence.
  • The W25N01GWTCIG supports clock frequencies up to 104 MHz. However, it's recommended to use a clock frequency of 50 MHz or lower to ensure reliable operation and to minimize power consumption.
  • The WP# pin should be pulled high during normal operation to enable write operations. If the WP# pin is pulled low, the device will be in a write-protected state, and any write operations will be ignored.
  • The deep power-down mode is used to reduce power consumption to a minimum when the device is not in use. In this mode, the device will consume less than 1 μA of current. However, the device will take longer to wake up from deep power-down mode compared to normal standby mode.
