W25N01GWZEIT - Winbond

Description: 1Gb QspiNAND Flash 104MHz SON8

Download W25N01GWZEIT Model

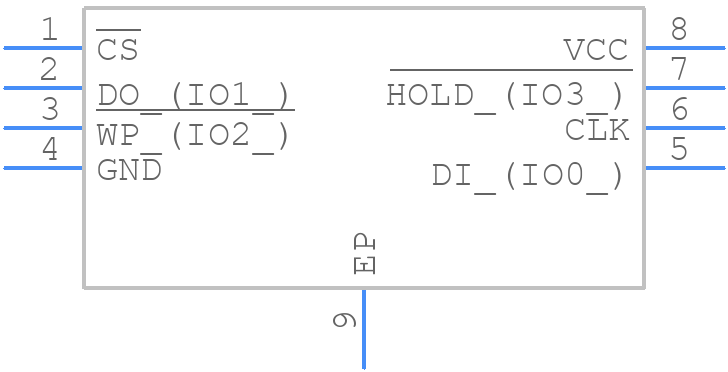

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25N01GWZEIT - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code ZE)
click to zoom
3D Models
W25N01GWZEIT - Winbond  - 3D model - Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code ZE)
click to zoom

W25N01GWZEIT Details

  • Manufacturer Part Number:

    W25N01GWZEIT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    WSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Date Of Intro:

    2017-03-08

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    8 mm

  • Memory Density:

    1073741824 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    QSPI

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    SLC NAND TYPE

  • Width:

    6 mm

W25N01GWZEIT Frequently Asked Questions (FAQs)

  • The W25N01GWZEIT has a minimum of 100,000 erase cycles per sector, and a total of 1,000,000 erase cycles for the entire device.
  • The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC.
  • The recommended clock frequency for the W25N01GWZEIT is up to 104 MHz. However, it's recommended to check the specific clock frequency requirements for your application and ensure that it's within the specified range.
  • The WP# pin should be pulled high during normal operation to allow write and erase operations. If the WP# pin is pulled low, the device will be in a protected state, and write and erase operations will be disabled.
  • The QPI mode allows the W25N01GWZEIT to operate in a quad-bus mode, which enables faster data transfer rates and improved performance. However, it requires specific hardware and software support.
