W25N01JWTBIG - Winbond

Description:  New W25N Family of SpiFlash Memories – W25N01JW: 1G-bit / 128M-Byte – Standard SPI: CLK, /CS, DI, DO, /WP, /Hold, – Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold – Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3 – Compatible SPI Serial Flash commands  Highest Performance Serial NAND Flash – 166MHz Standard/Dual/Quad SPI clocks – 332/664MHz equivalent Dual/Quad SPI – DTR (Dual Transfer Rate) up to 80MHz – 80MB/s continuous data transfer rate – Fast Program/Erase performance – More than 100,000 erase/program

Download W25N01JWTBIG Model

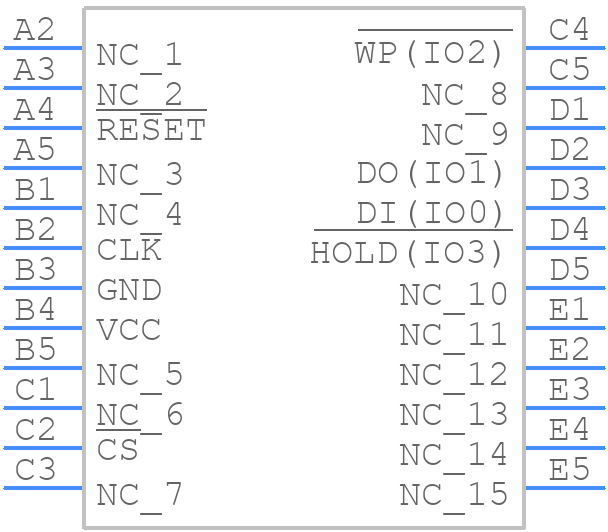

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25N01JWTBIG - Winbond PCB footprint - BGA - BGA - TFBGA24 Ball (6x8 mm2 (5x5-1 ball arrays)
click to zoom
3D Models
W25N01JWTBIG - Winbond  - 3D model - BGA - TFBGA24 Ball (6x8 mm2 (5x5-1 ball arrays)
click to zoom

W25N01JWTBIG Details

  • Manufacturer Part Number:

    W25N01JWTBIG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFBGA-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6.15

  • Clock Frequency-Max (fCLK):

    166 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    8 mm

  • Memory Density:

    1073741824 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA24,5X5,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00015 A

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    SLC NAND TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25N01JWTBIG Frequently Asked Questions (FAQs)

  • The W25N01JWTBIG has a minimum of 100,000 erase cycles per sector, and a total of 1,000,000 erase cycles for the entire device.
  • The HOLD# pin should be pulled high during power-up and power-down sequences to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to the HOLD# pin.
  • The recommended clock frequency for the W25N01JWTBIG is up to 104 MHz. However, it's recommended to check the specific application requirements and adjust the clock frequency accordingly.
  • Wear leveling can be implemented using a combination of hardware and software techniques. One approach is to use a wear leveling algorithm that distributes write cycles across the entire device, and another approach is to use a hardware-based wear leveling mechanism. Consult the application notes and datasheet for more information.
  • The main difference between the W25N01JWTBIG and the W25N01JVBIG is the package type. The W25N01JWTBIG is available in a TSOP-48 package, while the W25N01JVBIG is available in a VFBGA-48 package. Both devices have the same functionality and performance.
