W25N02JWZEIC - Winbond

Description: 2Gb Serial NAND Flash Memory with uniform 2KB+64B page size with STR=166Mhz & DTR=83Mhz

Download W25N02JWZEIC Model

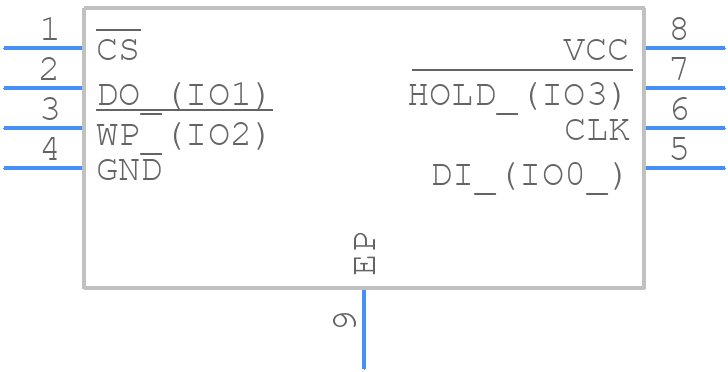

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25N02JWZEIC - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - WSON 8x6-mm
click to zoom
3D Models
W25N02JWZEIC - Winbond  - 3D model - Small Outline No-lead - WSON 8x6-mm
click to zoom

W25N02JWZEIC Details

  • Manufacturer Part Number:

    W25N02JWZEIC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6

  • Clock Frequency-Max (fCLK):

    166 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    8 mm

  • Memory Density:

    2147483648 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    268435456 words

  • Number of Words Code:

    256000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.0003 A

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    SLC NAND TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25N02JWZEIC Frequently Asked Questions (FAQs)

  • The W25N02JWZEIC supports up to 100,000 erase cycles.
  • The hold pin (HOLD#) is used to pause the current operation. To use it, pull the HOLD# pin low to pause the operation, and then pull it high to resume the operation.
  • The WP# pin is the write protect pin. When pulled low, it prevents writing to the status register and the memory array. To use it, pull the WP# pin low to enable write protection, and pull it high to disable write protection.
  • The optimal clock frequency depends on the specific application and system requirements. The W25N02JWZEIC supports clock frequencies up to 104 MHz. You should consult the datasheet and application notes to determine the optimal clock frequency for your specific use case.
  • The W25N02JWZEIC requires a power-on reset (POR) to ensure proper operation. The power-up sequence should follow the recommended power-up procedure outlined in the datasheet, which includes a power-on reset pulse and a delay before accessing the device.
