The W25N04KVZEIU has a minimum of 100,000 erase cycles per sector, and a total of 2,000,000 erase cycles for the entire device.
The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC.
The recommended clock frequency for the W25N04KVZEIU is up to 104 MHz. However, it's recommended to check the specific clock frequency requirements for your application and ensure that it's within the specified range.
The WP# pin should be pulled high during normal operation to allow write and erase operations. If the WP# pin is pulled low, the device will be in a protected state, and write and erase operations will be disabled.
The QPI mode allows the W25N04KVZEIU to operate in a quad-bus mode, which enables faster data transfer rates and improved performance. This mode is useful for applications that require high-speed data transfer.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25N04KVZEIU Overview

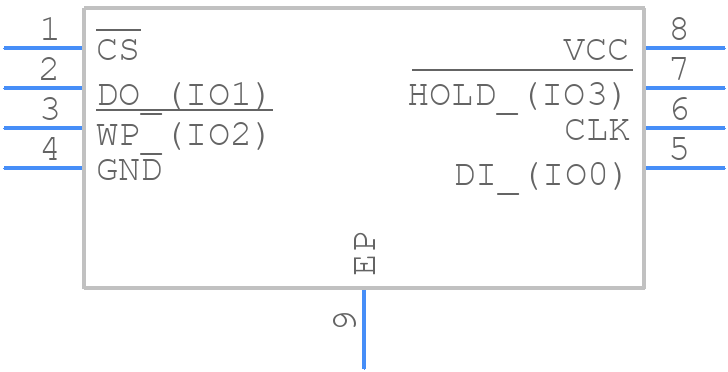

Use the download button to access the W25N04KVZEIU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W25N0,
or try a keyword search, such as Flash Memories
