W25N512GVBIG - Winbond

Description: 512Mb Serial NAND Flash Memory with uniform 2KB+64B page size and set Buffer Read Mode as default

Download W25N512GVBIG Model

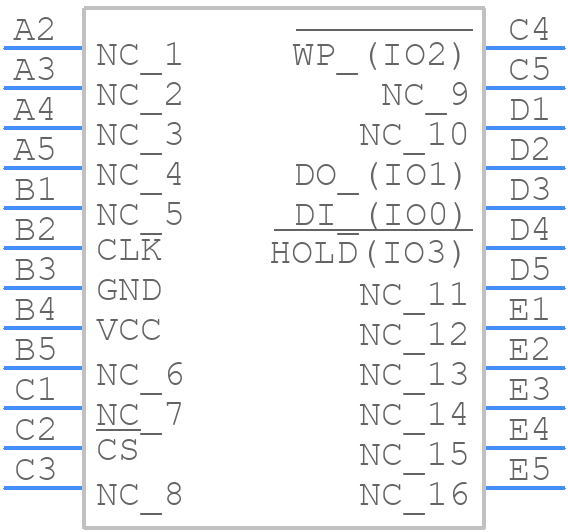

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25N512GVBIG - Winbond PCB footprint - BGA - BGA - TFBGA24 Ball (6x8 mm2 (5x5-1 ball arrays)
click to zoom
3D Models
W25N512GVBIG - Winbond  - 3D model - BGA - TFBGA24 Ball (6x8 mm2 (5x5-1 ball arrays)
click to zoom

W25N512GVBIG Details

  • Manufacturer Part Number:

    W25N512GVBIG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFBGA-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6.25

  • Clock Frequency-Max (fCLK):

    166 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    8 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA24,5X5,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    SLC NAND TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE
