W25N512GVEIG - Winbond

Description: 512Mb QspiNAND Flash 166MHz SON8

Download W25N512GVEIG Model

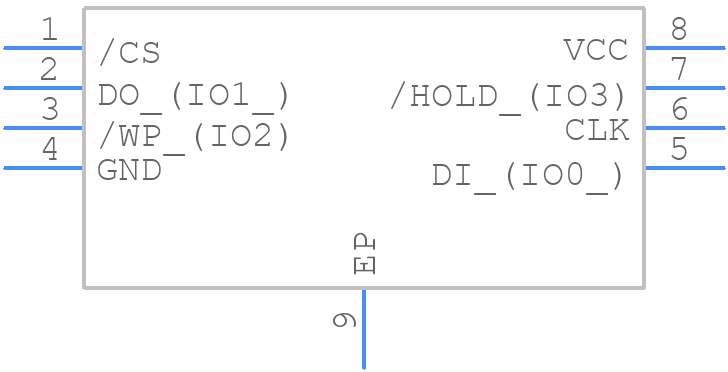

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25N512GVEIG - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad WSON 8x6
click to zoom
3D Models
W25N512GVEIG - Winbond  - 3D model - Small Outline No-lead - 8-Pad WSON 8x6
click to zoom

W25N512GVEIG Details

  • Manufacturer Part Number:

    W25N512GVEIG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6.3

  • Clock Frequency-Max (fCLK):

    166 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    8 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    SLC NAND TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25N512GVEIG Frequently Asked Questions (FAQs)

  • The W25N512GVEIG supports up to 100,000 erase cycles.
  • The W25N512GVEIG has a built-in power-on reset circuit that ensures the device is in a known state after power-up.
  • The typical programming time for the W25N512GVEIG is around 200-300 μs per 256-byte page.
  • No, the W25N512GVEIG does not support simultaneous read and write operations. It is a serial flash memory device that operates in a sequential manner.
  • The recommended operating temperature range for the W25N512GVEIG is -40°C to +85°C.
