W25N512GVEIT - Winbond

Description:  New W25N Family of SpiFlash Memories – W25N512GV: 512M-bit / 64M-Byte – Standard SPI: CLK, /CS, DI, DO, /WP, /Hold – Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold – Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3 – Compatible SPI serial flash commands  Highest Performance Serial NAND Flash – 166MHz Standard/Dual/Quad SPI clocks – 332/664MHz equivalent Dual/Quad SPI – 50MB/S continuous data transfer rate – Fast Program/Erase performance – 100,000 erase/program cycles(5) – 10-year data retention  Efficient

Download W25N512GVEIT Model
Schematic

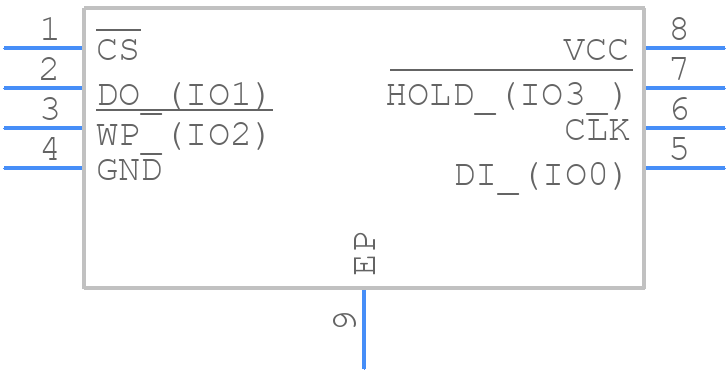

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25N512GVEIT - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code E)
click to zoom
3D Models
W25N512GVEIT - Winbond  - 3D model - Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code E)
click to zoom

W25N512GVEIT Details

  • Manufacturer Part Number:

    W25N512GVEIT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6.3

  • Clock Frequency-Max (fCLK):

    166 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    8 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    SLC NAND TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25N512GVEIT Frequently Asked Questions (FAQs)

  • The W25N512GVEIT has a minimum of 100,000 erase cycles per sector, and a total of 2,000,000 erase cycles for the entire device.
  • The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC.
  • The recommended clock frequency for the W25N512GVEIT is up to 104 MHz. However, it's recommended to check the specific clock frequency requirements for your application and ensure that it's within the specified range.
  • The WP# pin is used to enable or disable write protection for the status register. To enable write protection, connect WP# to VCC. To disable write protection, connect WP# to GND.
  • The deep power-down mode is used to reduce power consumption to a minimum. In this mode, the device is in a low-power state, and all commands are ignored. The device can be awakened from deep power-down mode by sending a reset command.
