W25N512GWPIT - Winbond

Description: 512Mb Serial NAND Flash Memory with uniform 2KB+64B page size and set Buffer Read Mode as default

Download W25N512GWPIT Model

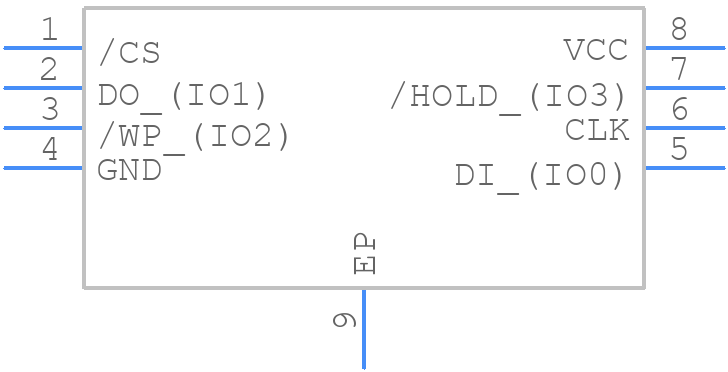

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25N512GWPIT - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - WSON 6x5-mm / 8x6-mm
click to zoom
3D Models
W25N512GWPIT - Winbond  - 3D model - Small Outline No-lead - WSON 6x5-mm / 8x6-mm
click to zoom

W25N512GWPIT Details

  • Manufacturer Part Number:

    W25N512GWPIT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6.3

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    6 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    QSPI

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    SLC NAND TYPE

  • Width:

    5 mm

W25N512GWPIT Frequently Asked Questions (FAQs)

  • The W25N512GWPIT has a minimum of 100,000 erase cycles per sector, and a total of 2,000,000 erase cycles for the entire device.
  • The hold pin (HOLD#) should be pulled high to disable the device during low power modes. This ensures that the device does not respond to any commands or data transfer during power-down modes.
  • The recommended clock frequency for the W25N512GWPIT is up to 104 MHz. However, it can operate at frequencies up to 120 MHz, but with reduced performance and increased power consumption.
  • Wear leveling is not implemented internally in the W25N512GWPIT. It is recommended to implement wear leveling in the system software or firmware to ensure even wear across the device and extend its lifespan.
