W25Q01JVSFIM - Winbond

Description: New Family of SpiFlash Memories – W25Q01JV: two 1G-bit / 128M-byte – Standard SPI: CLK, /CS, DI, DO, /WP, /Hold – Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold – Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3 – SPI/QPI DTR (Double Transfer Rate) Read – 3 or 4-Byte Addressing Mode – Software & Hardware Reset(1)  Highest Performance Serial Flash – 133MHz Standard/Dual/Quad SPI clocks – 266/532MHz equivalent Dual/Quad SPI – 66MB/S continuous data transfer rate – Min. 100K Program-Erase cycles – More than 20-y

Download W25Q01JVSFIM Model

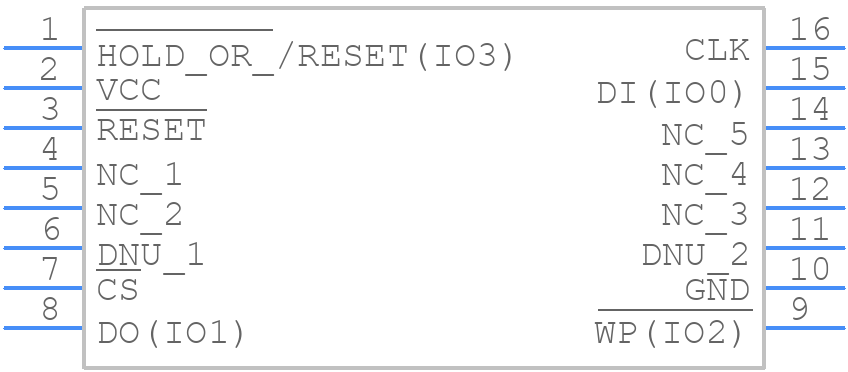

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q01JVSFIM - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin SOIC 300-mil (Package Code SF)
click to zoom
3D Models
W25Q01JVSFIM - Winbond  - 3D model - Small Outline Packages - 16-Pin SOIC 300-mil (Package Code SF)
click to zoom

W25Q01JVSFIM Details

  • Manufacturer Part Number:

    W25Q01JVSFIM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.31 mm

  • Memory Density:

    1073741824 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.64 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00004 A

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    7.49 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q01JVSFIM Frequently Asked Questions (FAQs)

  • The W25Q01JVSFIM supports up to 100,000 erase cycles.
  • The hold pin (HOLD#) is used to pause the serial flash memory during a read or write operation. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume the operation.
  • The WP# pin is the write protect pin. When pulled low, it prevents writing to the status register and the memory array. To use it, pull the WP# pin low to enable write protection, and pull it high to disable write protection.
  • The optimal clock frequency depends on the specific application and system requirements. The W25Q01JVSFIM supports clock frequencies up to 104 MHz. You should consult the datasheet and application notes to determine the optimal clock frequency for your specific use case.
  • The main difference between the two is the package type. The W25Q01JVSFIM is available in an 8-pin SOIC package, while the W25Q01JVSSIQ is available in an 8-pin WSON package. Choose the one that best fits your PCB design and layout requirements.
