The W25Q01JVBTIQ has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and environmental conditions.
The HOLD# pin is used to pause the current operation and put the device in a low-power state. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume. Make sure to check the datasheet for specific timing requirements.
The WP# pin is the write protect pin. When pulled low, it prevents writing to the status register and the memory array. To use it, pull the WP# pin high to enable writing, and pull it low to disable writing.
The optimal clock frequency depends on the specific application and system requirements. The W25Q01JVBTIQ supports clock frequencies up to 104 MHz. Consult the datasheet for specific timing requirements and consider factors like power consumption, noise tolerance, and system latency when selecting a clock frequency.
The W25Q01JVBTIQ is a 1Gb (128MB) serial flash memory chip with a quad-SPI interface. It has a unique combination of features, such as a high-speed clock frequency, low power consumption, and a small package size. Compare the datasheet with other similar chips to determine the best fit for your specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25Q01JVTBIQ Overview

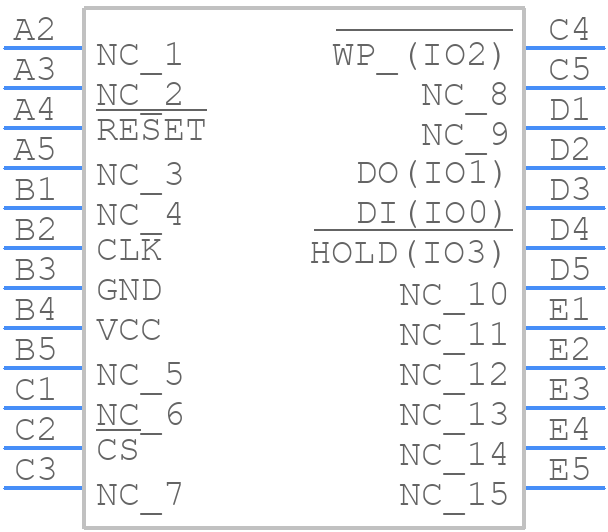

Use the download button to access the W25Q01JVTBIQ schematic symbol, PCB footprint, and 3D model.
