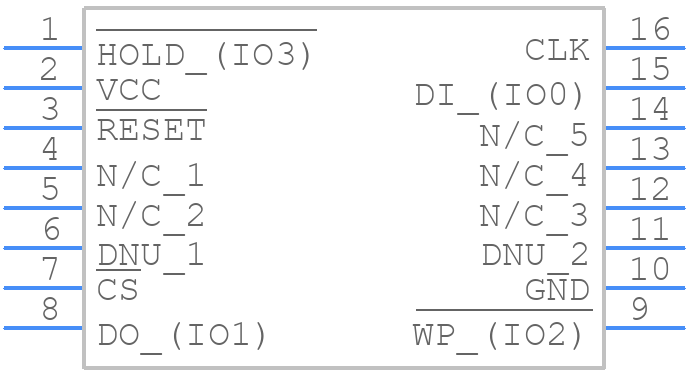

W25Q01NWSFIM - Winbond

W25Q01NWSFIM Frequently Asked Questions (FAQs)

• What is the maximum number of erase cycles for the W25Q01NWSFIM?
  The W25Q01NWSFIM has a minimum of 100,000 erase cycles per sector, and a total of 1,000,000 erase cycles for the entire device.
• How do I handle the hold pin (HOLD#) during power-up and power-down?
  The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC.
• What is the recommended clock frequency for the W25Q01NWSFIM?
  The recommended clock frequency for the W25Q01NWSFIM is up to 104 MHz. However, it's recommended to check the specific application and system requirements for the optimal clock frequency.
• How do I handle the WP# pin for write protection?
  The WP# pin is used to enable or disable write protection for the status register. When WP# is low, the status register is write-protected. When WP# is high, the status register can be written to. It's recommended to connect a pull-up resistor to VCC to enable write protection by default.
• What is the difference between the W25Q01NWSFIM and the W25Q01JVSSIM?
  The main difference between the W25Q01NWSFIM and the W25Q01JVSSIM is the package type. The W25Q01NWSFIM is available in a SOP-8 package, while the W25Q01JVSSIM is available in a VSOP-8 package. Both devices have the same electrical characteristics and functionality.
