W25Q01NWTBIM footprint, schematic symbol and 3D model by Winbond

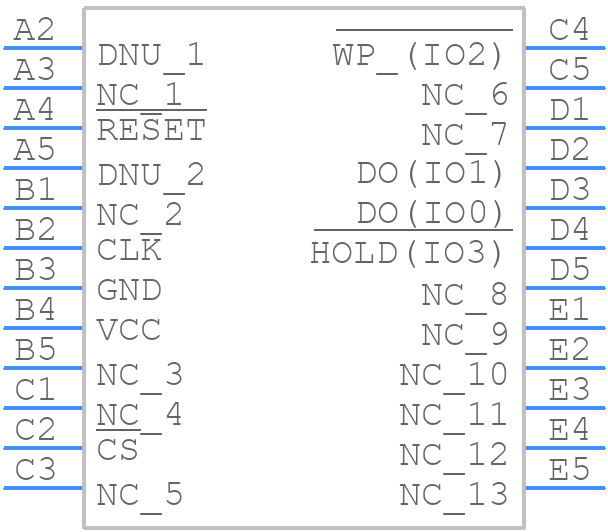

Symbol

PCB Footprints

3D Models

W25Q01NWTBIM Details

The maximum operating frequency of the W25Q01NWTBIM is 104 MHz.
The W25Q01NWTBIM can endure up to 100,000 program/erase cycles before it starts to degrade.
The data retention period of the W25Q01NWTBIM is 20 years at a temperature of 85°C.
Yes, the W25Q01NWTBIM can be used in industrial temperature range applications, with an operating temperature range of -40°C to 85°C.
The WP# pin on the W25Q01NWTBIM is used to enable or disable the write protection feature, which prevents accidental writes to the device.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the W25Q01NWTBIM schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like W25Q0, or try a keyword search, such as Flash Memories
