The W25Q10EWUXIE has a minimum of 100,000 erase cycles per sector, and a total of 20,000,000 erase cycles for the entire device.
The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC and a capacitor to GND to ensure a clean power-up and power-down sequence.
The W25Q10EWUXIE supports clock frequencies up to 104 MHz. However, it's recommended to use a clock frequency of 50 MHz or lower to ensure reliable operation and to minimize power consumption.
The WP# pin should be pulled high during normal operation to enable write operations. If the WP# pin is pulled low, the device will be in a write-protected state, and any write operations will be ignored.
The QPI mode allows the W25Q10EWUXIE to operate in a quad-bus mode, where four bits of data are transferred simultaneously, increasing the data transfer rate. This mode is useful for high-speed applications that require fast data transfer.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25Q10EWUXIE Overview

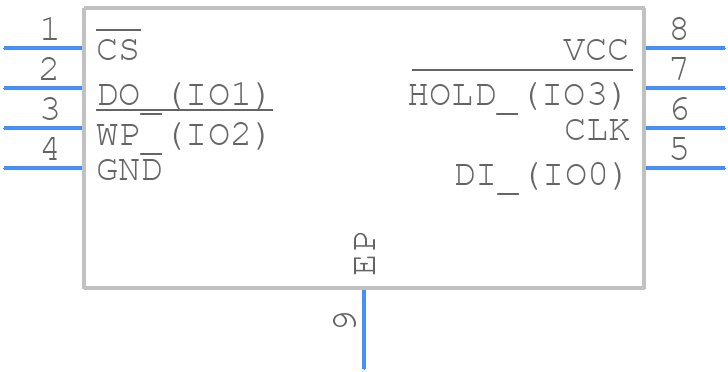

Use the download button to access the W25Q10EWUXIE schematic symbol, PCB footprint, and 3D model.
