W25Q128JVFIM - Winbond

Description: 128M-bit Serial Flash Memory with uniform 4KB sectors and Dual/Quad SPI

Download W25Q128JVFIM Model

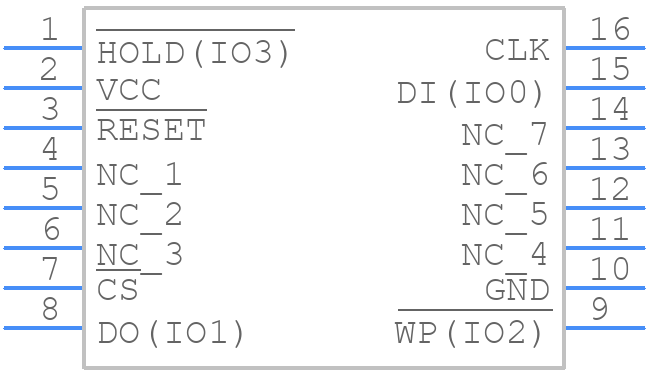

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q128JVFIM - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin SOIC_1
click to zoom
3D Models
W25Q128JVFIM - Winbond  - 3D model - Small Outline Packages - 16-Pin SOIC_1
click to zoom

W25Q128JVFIM Details

  • Manufacturer Part Number:

    W25Q128JVFIM

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.31 mm

  • Memory Density:

    134217728 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Words:

    16777216 words

  • Number of Words Code:

    16000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    16MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.64 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00002 A

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    7.49 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q128JVFIM Frequently Asked Questions (FAQs)

  • The W25Q128JVFIM has a minimum of 100,000 erase cycles per sector, and a maximum of 1,000,000 erase cycles per sector, depending on the operating conditions.
  • When the device is in low power mode, the HOLD# signal should be driven high to prevent any unwanted commands from being executed. This ensures that the device remains in low power mode and minimizes power consumption.
  • The recommended clock frequency for the W25Q128JVFIM is up to 104 MHz, but it can operate at frequencies up to 133 MHz in high-performance mode.
  • The W25Q128JVFIM has a software-controlled write protection mechanism. To write-protect a sector, the WP# pin should be driven low, and the sector should be protected using the write protection command (WRPR).
  • The Deep Power-Down (DP) mode is a low-power mode that reduces the power consumption of the device to a minimum. In this mode, the device is in a dormant state, and all internal clocks are stopped.
