W25Q128JVFIQ - Winbond

Description: 128M-bit Serial Flash Memory with uniform 4KB sectors and Dual/Quad SPI

Download W25Q128JVFIQ Model

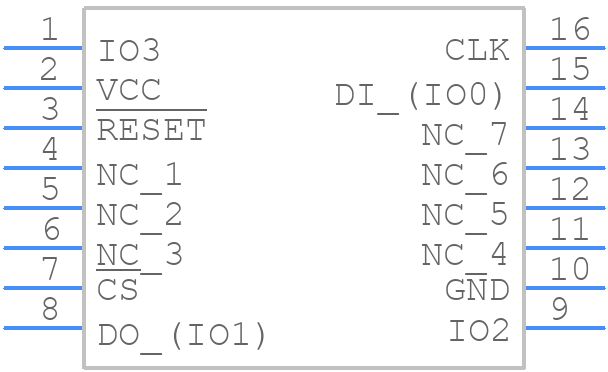

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q128JVFIQ - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - 16 PIN SOIC 300-MIL SF
click to zoom
3D Models
W25Q128JVFIQ - Winbond  - 3D model - Small Outline Packages - 16 PIN SOIC 300-MIL SF
click to zoom

W25Q128JVFIQ Details

  • Manufacturer Part Number:

    W25Q128JVFIQ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.31 mm

  • Memory Density:

    134217728 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Words:

    16777216 words

  • Number of Words Code:

    16000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    16MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.64 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00002 A

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    7.49 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q128JVFIQ Frequently Asked Questions (FAQs)

  • The W25Q128JVFIQ has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The HOLD# signal is used to pause the flash memory operation. To use it, connect HOLD# to a GPIO pin on your microcontroller and assert it low to pause the operation. Deassert it to resume the operation.
  • The recommended POR timing is to wait for at least 10ms after power-on before accessing the flash memory to ensure that the internal voltage regulator has stabilized.
  • Yes, the W25Q128JVFIQ is compatible with 1.8V power supplies. However, ensure that the input signals are also 1.8V-compatible to avoid any signal integrity issues.
  • Wear leveling is a technique to evenly distribute erase cycles across the flash memory. Implementing wear leveling requires a combination of hardware and software design. You can use a wear-leveling algorithm in your firmware to manage the erase cycles and ensure even wear across the memory.
