W25Q128JWPIQ - Winbond

Description: 128M-bit Serial Flash Memory with uniform 4KB sectors and Dual/Quad SPI

Download W25Q128JWPIQ Model

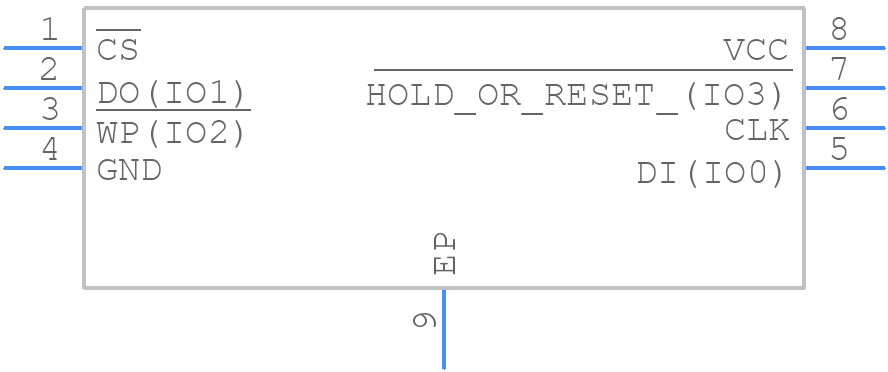

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q128JWPIQ - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad WSON 6x5-mm (Package Code P)
click to zoom
3D Models
W25Q128JWPIQ - Winbond  - 3D model - Small Outline No-lead - 8-Pad WSON 6x5-mm (Package Code P)
click to zoom

W25Q128JWPIQ Details

  • Manufacturer Part Number:

    W25Q128JWPIQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WSON-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Date Of Intro:

    2019-11-07

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    5.75

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    6 mm

  • Memory Density:

    134217728 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    16777216 words

  • Number of Words Code:

    16000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    16MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.02 mA

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    NOR TYPE

  • Width:

    5 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q128JWPIQ Frequently Asked Questions (FAQs)

  • The W25Q128JWPIQ has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The hold pin (HOLD#) is used to pause the current operation and put the device in a low-power state. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume the operation.
  • The recommended clock frequency for the W25Q128JWPIQ is up to 104 MHz, but it can operate at frequencies up to 133 MHz in fast mode.
  • The WP# pin is used to prevent accidental writes to the status register. To use it, pull the WP# pin low to enable write protection, and pull it high to disable write protection.
  • The power consumption of the W25Q128JWPIQ varies depending on the operating mode. In active mode, the typical current consumption is 15 mA at 104 MHz, and in standby mode, it is 10 μA.
