The W25Q16DVSNIG has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and environmental conditions.
The HOLD# signal is used to pause the current operation and allow the host to access the flash memory. To use it, connect HOLD# to the host's hold signal, and ensure the host asserts HOLD# low to pause the flash operation.
The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal. This ensures proper initialization of the device.
The optimal clock frequency depends on the specific application and system requirements. The W25Q16DVSNIG supports clock frequencies up to 104 MHz, but you should consider factors like power consumption, noise tolerance, and system latency when selecting the clock frequency.
The WP# pin is used to prevent accidental writes to the status register. When WP# is low, the status register is write-protected, and when WP# is high, the status register can be written to.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25Q16DVSNIG Overview

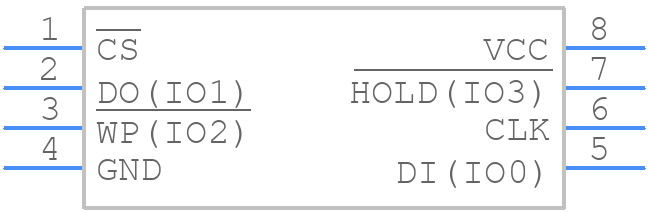

Use the download button to access the W25Q16DVSNIG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W25Q1,
or try a keyword search, such as Flash Memories
