The W25Q16DVSSIG has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
The hold signal (HOLD#) is used to pause the serial flash memory during a read or write operation. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume the operation.
The WP# pin is the write protect pin. When it is pulled low, the entire memory array is write-protected. To use it, connect the WP# pin to VCC or a GPIO pin to enable or disable write protection.
The optimal clock frequency depends on the specific application and system requirements. The W25Q16DVSSIG supports clock frequencies up to 104 MHz, but you may need to adjust the frequency based on your system's timing constraints and signal integrity.
The main difference is the operating temperature range. The W25Q16DVSSIG has an operating temperature range of -40°C to 85°C, while the W25Q16DVSSIQ has an operating temperature range of -40°C to 125°C.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25Q16DVSSIG Overview

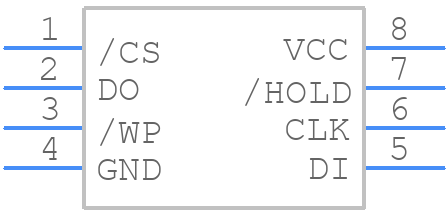

Use the download button to access the W25Q16DVSSIG schematic symbol, PCB footprint, and 3D model.
