W25Q16FWSSIQ - Winbond

Description: NOR Flash spiFlash, 1.8V, 16M-bit, 4Kb Uniform Sector

Download W25Q16FWSSIQ Model

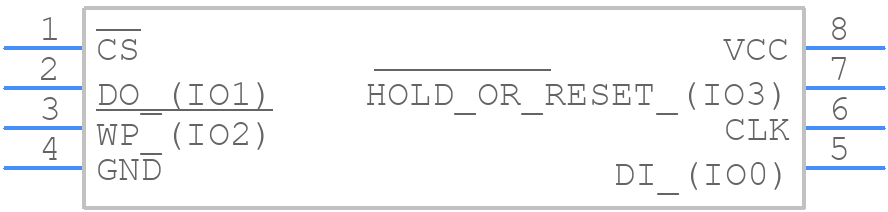

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q16FWSSIQ - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC 208-mil (Package Code SS)_1
click to zoom
3D Models
W25Q16FWSSIQ - Winbond  - 3D model - Small Outline Packages - 8-Pin SOIC 208-mil (Package Code SS)_1
click to zoom

W25Q16FWSSIQ Details

  • Manufacturer Part Number:

    W25Q16FWSSIQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    3

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    5.28 mm

  • Memory Density:

    16777216 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2097152 words

  • Number of Words Code:

    2000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    5.28 mm

W25Q16FWSSIQ Frequently Asked Questions (FAQs)

  • The W25Q16FWSSIQ has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and environmental conditions.
  • When the device is in low power mode, the HOLD# signal should be driven high to prevent any unwanted commands from being executed. This ensures that the device remains in low power mode and minimizes power consumption.
  • The recommended clock frequency for the W25Q16FWSSIQ is up to 104 MHz, but it can operate at frequencies up to 133 MHz with some limitations. Consult the datasheet for specific details.
  • Wear leveling is not implemented internally in the W25Q16FWSSIQ. It is recommended to implement wear leveling in software to ensure even wear across the device and extend its lifespan.
  • The WP# pin is used to prevent accidental writes to the status register. When WP# is low, the status register is write-protected, and when WP# is high, the status register can be written to.
